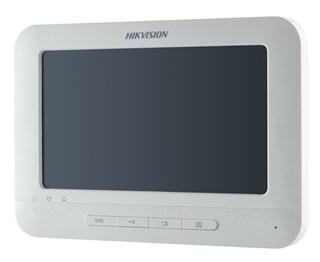

HIKVISION 7″ TOUCH-SCREEN INDOOR STATION 800*480 WIFI 802.11

Model: HikVision DS-KH6310-W

Video Intercom Indoor Station with 7-inch Touch Screen

Features

Basic Functions

• Hands-free audiovisual communication with the door station and the master station in the intercom system
• Panic call supported
• 8-ch zone alarm supported
• Supports monitoring door stations and external cameras
• Remote unlocking via the client software or the app
• High-performance embedded SOC processor

Video/Audio Functions

• HD video surveillance with high performance CMOS
• 7-inch colorful FTF LCD with resolution 800 x 480
• Capacitive touch screen and physical buttons
• Noise suppression and echo cancellation
• H.264 video compression

Alarm Functions

• 8-ch alarm input sensors supported
• Auto-uploads alarm messages to the master station the client software, or the app once the alarm sensor is triggered

Additional Features

• Community notice supported
• Convenient installation and easy operation

Specifications

System Parameters

• Processor: High-Performance Embedded SOC Processor
• Operation System: Embedded Linux Operation System
• Memory: 256M

Display Parameters

• Display Screen: 7-Inch Colorful TFT LCD
• Display Resolution: 800 × 480
• Operation Method: Capacitive Touch Screen, Physical Button
• Operation interface: Flattened UI Operation Interface

Audio Parameters

• Audio Input: Built-in Omnidirectional Microphone
• Audio Output: Built-in Loudspeaker
• Audio Compression Standard: G.711 U
• Audio Compression Rate: 64 Kbps
• Audio Quality: Noise Suppression and Echo Cancellation

Network Parameters

• Ethernet: 10/100 Mbps Self-Adaptive Ethernet
• Network Protocol: TCP/IP, RTSP

Alarm Parameters

• Alarm Input: 8-ch Alarm Input Sensor

Device Interfaces

• Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• RS-485: 1 RS-485 Half-Duplex Port
• I/O Output: 1

General

• Power Supply: 12 VDC/24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612)
• Power Consumption: =10 W
• Certification: FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
• Working Temperature: -10° C to + 55° C (14° F to 131° F)
• Working Humidity: 10% to 90%
• Dimensions(L × W × H): 217 mm × 142 mm × 26 mm (8.5″ × 5.6″ × 1.0″)
