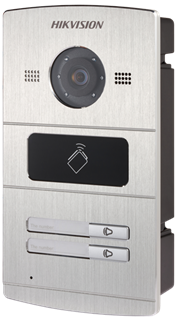

HIKVISION 1.3MP DOOR STATION PLASTIC 1CHANNEL OUTDOOR STATIO

• Video intercom function
• HD video surveillance (Max. resolution: 1280×720@25fps, WDR, 120° wide angle)
• Self-adaptive light supplement
• Access control function
• Activating card via local station function (This function will be invalid if the card has been activated via iVMS-4200)
• Auto-uploading captured pictures to FTP or iVMS-4200 Client while unlocking the door
• Door magnetic alarm and tamper -proof alarm function
• Noise suppression and echo cancellation
• Remote upgrade, batch setting functions

System Parameters

• Processor High-Performance Embedded SOC Processor
• Operation System: Embedded Linux OS

Video Parameters

• Camera: CMOS Low Illumination 1.3 MP HD Colorful Camera
• Video Compression Standards: H.264
• Resolution: 1280×720
• Video Frame: 25fps

Audio Parameters

• Audio Input Built-in Omnidirectional Microphone
• Audio OutputBuilt-in Loudspeaker
• Audio Compression Standard: G.711 U
• Audio Compression Rate: 64 Kbps
• Audio Quality: Noise Suppression and Echo Cancellation

Access Control Parameters

• Internal Card Reader: Built-in Card Reader
• DoorButton: Door Button for openingthe Door
• NO/NC: Supporting NO/NC Status Settings
• Door Magnetic Detection
• Detecting: Door Magnetic Status

Light Supplement

• Light Supplement Mode: IR Supplement
