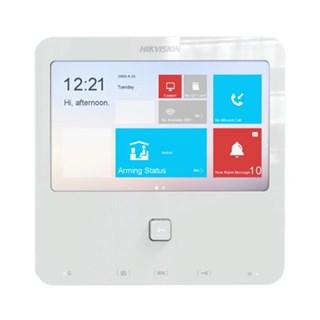

HIKVISION 7″ ULTRATHIN TOUCH-SCREEN INDOOR STATION

• Video intercom function


• Remote unlocking function;


• Resident-to-resident audio call


• Live view of HD video


• Voice message function


• Auto- respond and no disturbing mode


• Noise suppression and echo cancellation


• 8-ch zone alarm and SOS calling function


• Community notice


• Convenient installation with the bracket, batch setting, andpower over video/audio distributor

System Parameters

• Processor High-Performance Embedded SOC Processor


• Operation System: Embedded Linux Operation System

Display Parameters

• Display Screen: 7-Inch Colorful TFT LCD


• Display: Resolution 800 ×480


• Operation Method: Capacitive Touch Screen, Touch Key


• Operation Interface: Flattened UI Operation Interface

Audio Parameters

• Audio Input: Built-in Omnidirectional Microphone


• Audio Output: Built-in Loudspeaker


• Audio Compression Standard: G.711U


• Audio Compression Rate: 64 Kbps


• Audio Quality: Noise Suppression and Echo Cancellation supported

Network Parameters

• Ethernet: 10M/100M Self-Adaptive Ethernet


• Network Protocol: TCP/IP, SNMP, SIP, RTSP

Alarm Parameters

• Alarm Input: 8-ch Alarm Input Sensor

Device Interfaces

• Internet Access: 1 RJ45;10M/100MSelf-Adaptive Ethernet Access


• RS485: 1; RS-485 Half-Duplex


• I/O Output: 1

Other Parameters

• Power Supply: Power Over Network Cable/ 12V DC


• Power Consumption: =10 W


• Working Temperature -10° C to + 55° C (14° F to 131° F)


• Working Humidity: 10% -90%


• Dimension (L x W x H): 179 mm × 164.5 mm × 10.8 mm


• Certification: FCC, CE
