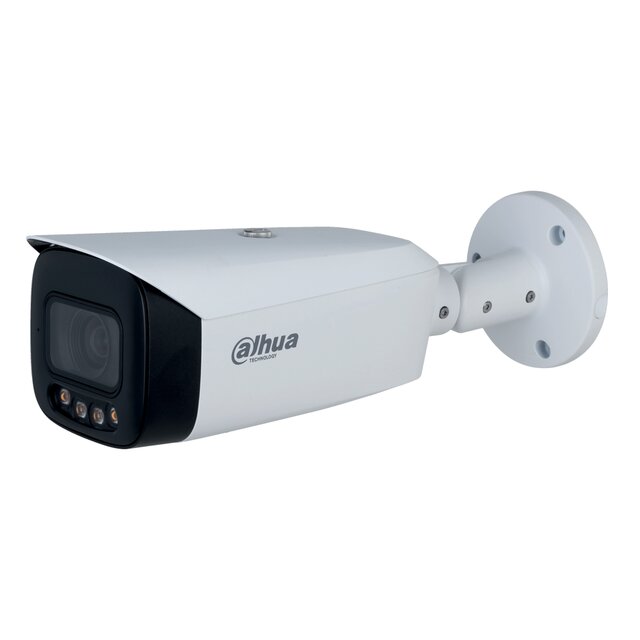

DAHUA 8MP WIZMIND BULLET 2.8MM

Model: Dahua IPC-HFW5849T1-ASE-LED

8MP Full-color Fixed-focal Warm LED Bullet WizMind Network Camera

Features

• 8-MP 1/1.2″ CMOS image sensor, low illuminance, high image definition.
• Outputs max. 8 MP (3840 × 2160) @30 fps.
• Built-in warm illuminator, and the max. illumination distance is 60 m.
• ROI, SVC, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker; supports two-way talk.
• 12 VDC/PoE power supply.
• ePoE, IP67 protection.
• SMD 3.0.

Specifications

Camera

• Image Sensor: 1/1.2” CMOS
• Max. Resolution: 3840 (H) × 2160 (V)
• ROM: 128 MB
• RAM: 1 GB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination: [email protected]
• S/N Ratio: >56 dB
• Illumination Distance: 60 m (196.85 ft)
• Illuminator On/Off Control: Auto/Manual
• Illuminator Number: 4 (Warm light)
• Pan/Tilt/Rotation Range:
  • Pan: 0°–360°
  • Tilt: -20°–90°
  • Rotation: 0°–360°

Lens

• Lens Type: Fixed-focal
• Mount Type: M22
• Focal Length: 2.8 mm
• Max. Aperture: F1.0
• Field of View: 2.8 mm: H: 112°; V: 61° ; D: 131°
• Iris Type: Fixed
• Close Focus Distance: 2.8 mm: 3.1 m (10.2 ft)
• DORI Distance:
• Detect: 82.8 m (271.65 ft)
• Observe: 33.1 m (108.60 ft)
• Recognize: 16.6 m (54.46 ft)
• Identify: 8.3 m (27.23 ft)

Smart event

• IVS: Abandoned object; missing object
• Heat Map: Yes

Professional, intelligent

• IVS (Perimeter Protection): Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
• Face Detectio: Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
• People Counting: Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/ monthly/weekly/daily reports Support the counting of number in area, and 4 rules configuration Count number of people or stay time and link alarm Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm
• Intelligent Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

• Video Compression:H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
• Smart Codec: Smart H.265+/Smart H.264+
• Video Frame Rate:
  • Main stream: 3840 × 2160 @(1 fps–25/30 fps)
  • Sub stream: D1 (1 fps–25/30 fps)
  • Third stream: 1080p (1 fps–25/30 fps)
    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Stream Capability: 3 streams
• Resolution: 3840 × 2160; 3072 × 2048; 3072 × 1728; 2592 × 1944; 2688 × 1520; 2048 × 1536; 2304 × 1296; 1080p (1920 × 1080); 1.3 M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control: CBR/VBR
• Video Bit Rate:
  • H.264: 3 kbps–20480 kbps
  • H.265: 3 kbps–20480 kbps
• Day/Night: Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 140 dB
• Defog: Yes
• White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
• Gain Control: Auto/Manual
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Region of Interest (RoI): Yes (4 areas)
• Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 4M resolution and lower)
• Mirror: Yes
• Privacy Masking: 8 areas

Audio

• Built-in MIC: Yes
• Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723

Alarm

• Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; intensity change detection; people counting; face detection; people counting in area; stay alarm; people No. exception detection; queue management

Network

• Network: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Network Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
• Cyber Security: Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
• Interoperability: ONVIF( Profile S/Profile G/Profile T); CGI; Milestone; P2P
• User/Host: 20 (Total bandwidth: 80 M)
• Storage: FTP; SFTP; Micro SD card (support max. 256 G); NAS
• Browser:
  • IE: IE8 and later
  • Chrome
  • Firefox
• Management Software: Smart PSS; DSS; DMSS
• Mobile Client: IOS; Android

Certification

• Certifications:
  • CE-LVD: EN62368-1
  • CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
  • FCC: 47 CFR FCC Part 15, Subpart B
  • UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

• Audio Input: 1 channel (RCA port)
• Audio Output: 1 channel (RCA port)
• Alarm Input: 1 channel in: 5mA 3V–5 VDC
• Alarm Output: 1 channel out: 300mA 12 VDC

Power

• Power Supply: 12 VDC (±30%)/PoE (802.3af)/ePoE
• Power Consumption:
  • Basic: 5.3 W (12 VDC); 6.2 W (PoE)
  • Max. (H.265 + 3 streams + intelligence + LED): 11.1 W (12 VDC); 12.1 W (PoE)

Environment

• Operating Conditions: –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
• Storage Conditions: –40 °C to +60 °C (–40 °F to +140 °F)
• Protection Grade: IP67

Structure

• Casing: Metal
• Dimensions: 288.4 mm × 94.4 mm × 84.7 mm
• Net Weight: 1.15 kg (2.5 lb)
• Gross Weight: 1.38 kg (3.0 lb)
