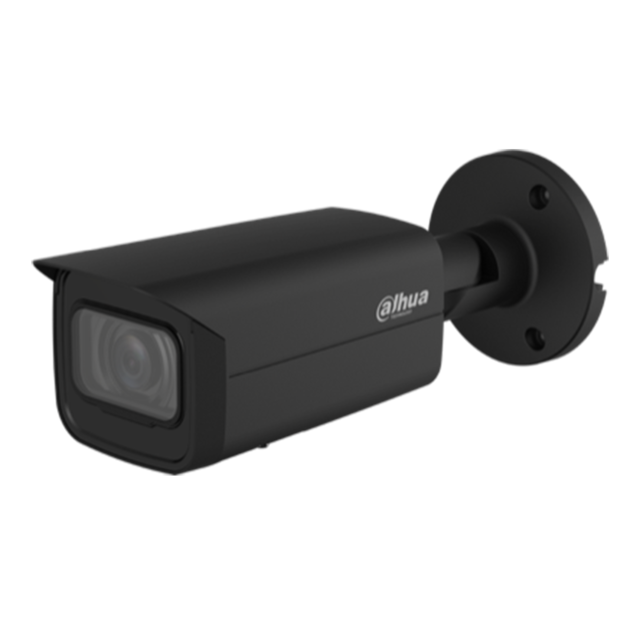

DAHUA 4MP WIZSENSE BULLET VARIFOCAL 2.7MM–13.5MM – BLACK

Model: Dahua DH-IPC-HFW3441TP-ZS-27135-S2 Black

4MP IR Vari-focal Bullet WizSense Network Camera

Features

• 4-MP 1/3″ CMOS image sensor, excellent low luminance performance and high definition of images.
• Outputs max. 4 MP (2688 × 1520) @25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in IR LED, max. IR distance: 60 m.
• ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
• Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
• Alarm: 1 in, 1 out (Only – ZAS supports ); audio: 1 in, 1 out (Only – ZAS supports); max. 256 G Micro SD card. built-in Mic.
• 12 VDC/PoE power supply facilitates installation.
• IP67, IK10 (optional) protection.
• SMD 4.0, AI SSA.

Specifications

Camera

• Image Sensor: 1/3″ CMOS
• Max. Resolution: 2688 (H) × 1520 (V)
• ROM: 128 MB
• RAM: 512 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination:
  • 0.005 [email protected] (Color, 30 IRE)
  • 0.0005 [email protected] (B/W, 30 IRE)
  • 0 lux (Illuminator on)
• S/N Ratio: >56 dB
• Illumination Distance: 60 m (196.85 ft)
• Illuminator On/Off Control: Auto/Manual
• Illuminator Number: 4 (IR LED)
• Pan/Tilt/Rotation Range: Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens

• Lens Type: Motorized vari-focal
• Lens Mount: φ14
• Focal Length: 2.7 mm–13.5 mm
• Max. Aperture: F1.5
• Field of View:
  • Horizontal: 104°–29°
  • Vertical: 54° –16°
  • Diagonal: 125° –33°
• Iris Control: Fixed
• Close Focus Distance: 0.8 m (2.62 ft)
• DORI Distance:
• Detect: W-64m T-210m
• Observe: W-25.6m T-84m
• Recognize: W-12.8m T-42m
• Identify: W-6.4m T-21m

Intelligence

• IVS (Perimeter Protection)
• Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
• AI SSA
• Yes
• Quick Pick
• With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
• Smart Search
• Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
• Smart Codec:
  • Smart H.265+
  • Smart H.264+
• AI Coding:
  • AI H.265
  • AI H.264
• Video Frame Rate:
  • Main stream: 2688 × 1520 @ (1–25/30) fps
  • Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
  • Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
• Stream Capability: 3 streams
• Resolution: 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)
• Bit Rate Control: CBR/VBR
• Video Bit Rate:
  • H.264: 3 kbps–8192 kbps
  • H.265: 3 kbps–8192 kbps
• Day/Night: Auto (ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 120 dB
• Scene Self-adaptation (SSA): Yes
• White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control: Auto
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Image Stabilization: Electronic Image Stabilization (EIS)
• Region of Interest (RoI): Yes (4 areas)
• Defog: Yes
• AFSA: Yes
• Image Rotation: 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower)
• Mirror: Yes
• Privacy Masking: 4 areas

Audio

• Built-in MIC: Yes
• Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723

Alarm

• Alarm Event: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception

Network

• Network Port: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Network Protocol: IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
• Cyber Security: Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
• Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
• User/Host: 20 (Total bandwidth: 64 M)
• Storage: FTP; SFTP; Micro SD card (support max. 256 G); NAS
• Browser:
  • IE: IE11
  • Chrome
  • Firefox
• Management Software: Smart PSS; DSS; DMSS
• Mobile Client: IOS; Android

Certification

• Certifications:
  • CE-LVD: EN62368-1;
  • CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
  • FCC:47 CFR FCC Part 15, Subpart B;
  • UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

• Audio Input: 1 channel (RCA port) (Only – ZAS supports)
• Audio Output: 1 channel (RCA port) (Only – ZAS supports)
• Alarm Input: 1 channel in: 5 mA 3–5 VDC (Only – ZAS supports)
• Alarm Output: 1 channel out: 300 mA 12 VDC (Only – ZAS supports)

Power

• Power Supply: 12 VDC/PoE (802.3af)
• Power Consumption
  • Basic: 2.8 W (12 VDC); 3.6 W (PoE)
  • Max. (WDR + IR intensity + Intelligence): 7.9 W (12 VDC); 9.2 W (PoE)

Environment

• Operating Temperature: –30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH
• Storage Temperature: –40 °C to +60 °C (–40 °F to 140 °F)
• Protection: IP67

Structure

• Casing: Metal
• Product Dimensions: 244.1 mm × 79.0 mm × 75.9 mm
• Net Weight: 820 g (1.81 lb)
• Gross Weight: 1090 g (2.40 lb)
