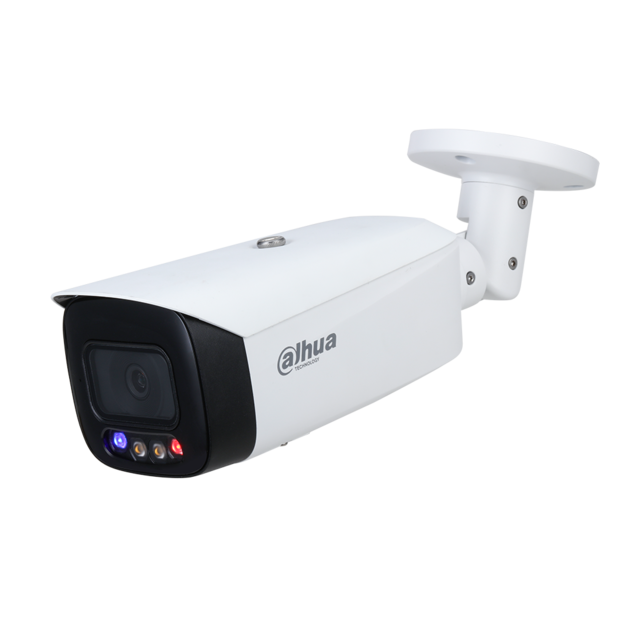

DAHUA 8MP WIZSENSE BULLET 2.8MM – LIGHT & ALARM

Model: Dahua DH-IPC-HFW3849T1P-AS-PV-0280B-S4

8MP Full-color Active Deterrence Fixed-focal Bullet WizSense Network Camera

Features

• 8MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
• Outputs max. 8MP (3840 × 2160) @20 fps (AI function enabled by default)and supports 8MP (3840 × 2160) @25/30 fps (with AI function disabled)
• H.265 codec, high compression rate, low bit rate
• Built-in warm illuminator, and the max. illumination distance: 30 m
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various band width and storage environments
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Tripwire, intrusion (the three functions support the classification and accurate detection of vehicle and human)
• Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, net work disconnection, IP conflict, illegal access, and voltage detection
• Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing
• Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker
• 12V DC/PoE power supply
• IP67 protection
• SMD Plus
• Red and blue flashlight alarm

Specifications

Camera

• Image Sensor: 1/2.8”8Megapixel progressive CMOS
• Max. Resolution: 3840 (H) × 2160 (V)
• ROM: 128 MB
• RAM: 512 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination: 0.007 [email protected]
• S/N Ratio: > 56 dB
• Illumination Distance: 30 m (98.4 ft)
• Illuminator On/Off Control: Auto/Manual
• Illuminator Number: 2 (Warm light)
• Pan/Tilt/Rotation Range/
  • Pan: 0°–360°
  • Tilt: 0°–90°
  • Rotation: 0°–360°

Lens

• Lens Type: Fixed-focal
• Mount Type: M12
• Focal Length: 2.8 mm
• Field of View: 2.8 mm: Horizontal 107° × Vertical 56° × Diagonal 127°
• Iris Type: Fixed
• Close Focus Distance: 2.8 mm: 1.5 m (4.9 ft)
• DORI Distance
• Detect: W-87.7m T-110.3m
• Observe: W-35.1m T-44.1m
• Recognize: W-17.5m T-22.1m
• Identify: W-8.8m 11.0m

Professional, intelligent

• IVS (Perimeter Protection): Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
• Intelligent Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
• Smart Codec: Smart H.265+/Smart H.264+
• Video Frame Rate:
  • Main stream:
    • 3840 × 2160 @(1–20 fps by default)
    • 3840 × 2160 @(1–25/30 fps with AI function disabled)
  • Sub stream: 704 × 576 @(1–25 fps)/704 × 480 @ (1–30 fps)
  • Third stream: 1920 × 1080 @(1–25/30 fps)
• Stream Capability: 3 streams
• Resolution: 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control: CBR/VBR
• Video Bit Rate:
  • H.264: 3 kbps–8192 kbps
  • H.265: 3 kbps–8192 kbps
• Day/Night: Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 120 dB
• Scene Self-adaptation (SSA): Yes
• White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
• Gain Control: Auto/Manual
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas)
• Region of Interest (RoI): Yes (4 areas)
• Smart Illumination: Yes
• Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower)
• Mirror: Yes
• Privacy Masking: 4 areas

Audio

• Built-in MIC: Yes
• Audio Compression: PCM, G.711a, G.711Mu, G726

Alarm

• Alarm Event: No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)

Network

• Network: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA ; PPPoE; SNMP
• Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
• Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
• User/Host: 20 (Total bandwidth: 72 M)
• Storage: FTP; SFTP; Micro SD card (support max. 256 G); NAS
• Browser:
  • IE: IE8; IE9; IE11
  • Chrome
  • Firefox
• Management Software: Smart PSS; DSS; DMSS
• Mobile Phone: IOS; Android

Certification

• Certification:
  • CE-LVD: EN62368-1
  • CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
  • FCC: 47 CFR FCC Part 15, Subpart B

Port

• Audio Input: 1 channel (RCA port)
• Audio Output: 1 channel (RCA port)
• Alarm Input: 1 channel in: 5mA 3V–5V DC
• Alarm Output: 1 channel out: 300mA 12V DC

Power

• Power Supply: 12V DC/PoE (802.3af)
• Power Consumption:
  • Basic power consumption: 3.2W (12V DC); 4.2W (PoE)
  • Max. power consumption (WDR + H.265 + red and blue lights intensity + warm light + max. sound alarm): 8.2W (12V DC); 9.7W (PoE)

Environment

• Operating Conditions: –40°C to +60°C (–40°F to +140°F)/Less than 95% RH
• Storage Conditions: –40°C to +60°C (–40°F to +140°F)
• Protection Grade: IP67

Structure

• Casing: Metal + plastic
• Dimensions: 288.4 mm × 94.4 mm × 84.7 mm (11.4″ × 3.7″ × 3.3″) (L × W × H)
• Net Weight: 1.0 kg (2.2 lb)
• Gross Weight: 1.23 kg (2.7 lb)
