Model: Dahua DH-IPC-HFW3849T1P-ZAS-PV-27135

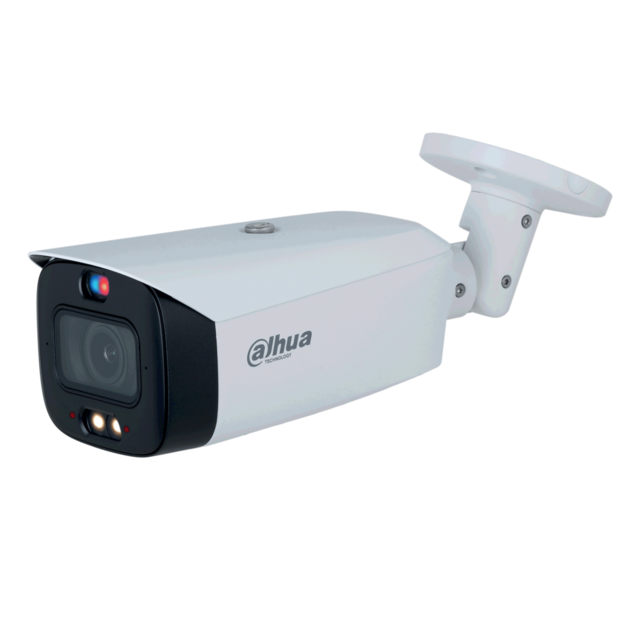

8MP Smart Dual Illumination Active Deterrence Vari-focal Bullet WizSense Network Camera
- 8-MP 1/2.8″ CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840 × 2160) @25/30 fps. · H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk.
- 12 VDC/PoE power supply.
- IP67 protection.
- Sound and light alarm (red and blue lights).
- SMD 4.0.
- One-click arming/disarming through alarm input.
- Image Sensor: 1/2.8″ CMOS
- Max. Resolution: 3840 (H) × 2160 (V)
- ROM: 128 MB
- RAM: 1 GB
- Scanning System: Progressive
- Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
- Min. Illumination:
- S/N Ratio: ﹥56 dB
- Illumination Distance
- 50 m (164.04 ft) (IR)
- 40 m (131.23 ft) (warm light)
- Illuminator On/Off Control: Auto/Manual
- Illuminator Number
- 2 (IR LED)
- 2 (warm light)
- Pan/Tilt/Rotation Range
- Pan: 0°–360°
- Tilt: 0°–90°
- Rotation: 0°–360°
- Lens Type: Motorized vari-focal
- Mount Type: φ16
- Focal Length: 2.7 mm–13.5 mm
- Max. Aperture: F1.0
- Field of View:
- Horizontal: 108°–34°
- Vertical: 56°–19°
- Diagonal: 130°–39°
- Iris Type: Fixed
- Close Focus Distance: 1.5 m (4.92 ft)
- DORI Distance:
- Detect: W-89.9m T-257.4m
- Observe: W-36.0m T-103.0m
- Recognize: W-18m T-51.5m
- Identify: W-19m T-25.7m
- IVS (Perimeter Protection): Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
- SMD 4.0: Less false alarm, longer detection distance
- Quick Pick: With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
- Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
- AI SSA: Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
- Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
- Smart Codec: Smart H.265+; Smart H.264+
- AI Coding: AI H.265; AI H.264
- Video Frame Rate:
- Main stream: 3840 × 2160@ (1–30 fps)
- Sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps)
- Third stream: 1920 × 1080@ (1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
- Stream Capability: 3 streams
- Resolution: 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
- Bit Rate Control: CBR/VBR
- Video Bit Rate:
- H.264: 3 kbps–8192 kbps
- H.265: 3 kbps–8192 kbps
- Day/Night: Auto (ICR)/Color/B/W
- BLC: Yes
- HLC: Yes
- WDR: 120 dB
- Scene Self-adaptation: Yes
- White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
- Gain Control: Auto; manual
- Noise Reduction: 3D NR
- Motion Detection: OFF/ON (4 areas)
- Region of Interest (RoI): Yes (4 areas)
- Image Stabilization: Electronic Image Stabilization (EIS)
- Smart Illumination: Yes
- Defog: Yes
- Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
- Mirror: Yes
- Privacy Masking: 4 areas
- Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; security exception
- Network: RJ-45 (10/100 Base-T)
- SDK and API: Yes
- Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
- Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
- Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
- User/Host: 20 (Total bandwidth: 72 M)
- Storage: FTP; SFTP; Micro SD card (support max. 256 G); NAS
- IE: IE8/9/11
- Management Software: Smart PSS; DSS; DMSS
- Mobile Phone: iOS; Android
- CE-LVD: EN 62368-1;
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
- FCC: 47 CFR FCC Part 15, Subpart B;
- UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
- Audio Input: 1 channel (RCA port)
- Audio Output: 1 channel (RCA port)
- Alarm Input: 1 channel in: 5mA 3V–5 VDC
- Alarm Output: 1 channel out: 300mA 12 VDC
- Power Supply: 12V DC/PoE (802.3af)
- Power Consumption:
- Basic: 4.3 W (12 VDC); 5.5 W (PoE)
- Max. (H.265+main stream/IR intensity+warm light on): 7.9 W (12 VDC); 9.8 W (PoE)
- Operating Conditions: –30 °C to +60 °C (–22 °F to +140 °F)/Less than 95% RH
- Storage Conditions: –40 °C to +60 °C (–40 °F to +140 °F)
- Protection Grade: IP67
- Casing: Metal + plastic
- Dimensions: 288.4 mm × 94.4 mm × 84.7 mm
- Net Weight: 1.05 kg (2.31 lb)
- Gross Weight: 1.35 kg (2.98 lb)
