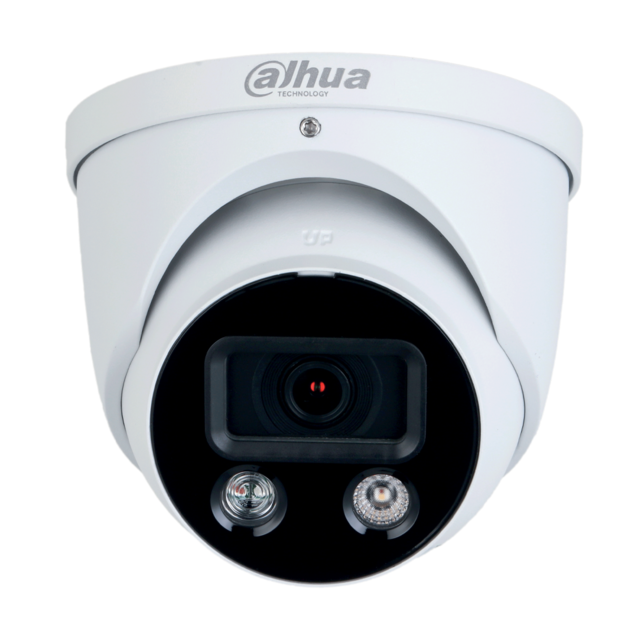

DAHUA 8MP WIZSENSE TURRET 2.8MM – LIGHT & ALARM

Model: Dahua DH-IPC-HDW3849HP-AS-PV-0280B-S4

8MP Full-color Active Deterrence Fixed-focal Eyeball WizSense Network Camera

Features

• 8MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
• Outputs max.8MP (3840 × 2160) @20 fps (AI function enabled by default)and supports 8MP (3840 × 2160) @25/30 fps (when AI function disabled)
• H.265 codec, high compression rate, low bit rate
• Built-in warm illuminator, and the max. illumination distance: 30 m
• ROI, Smart H.265+/Smart H.264+, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D NR, HLC, BLC, digital
• watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire (support the classification and · accurate detection of vehicle and human)
• Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
• Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing
• Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker
• 12V DC/PoE power supply
• IP67 protection
• SMD Plus
• Red and blue flashlight alarm

Specifications

Camera

• Image Sensor: 1/2.8”8Megapixel progressive CMOS
• Max. Resolution: 3840(H) × 2160 (V)
• ROM: 128 MB
• RAM: 512 MB
• Scanning System: Progressive
• Electronic Shutter Speed:
  • Auto/Manual 1/3 s–1/100,000 s
  • Min. Illumination
  • 0.007 Lux @ F1.4
• S/N Ratio: > 56 dB
• Illumination Distance: 30 m (98.4 ft)
• Illuminator On/Off Control: Auto/Manual
• Illuminator Number: 1 (Warm light)
• Pan/Tilt/Rotation Range
  • Pan: 0°–360°
  • Tilt: 0°–78°
  • Rotation: 0°–360°

Lens

• Lens Type: Fixed-focal
• Mount Type: M12
• Focal Length: 2.8 mm
• Max. Aperture: F1.4
• Field of View: 2.8 mm: Horizontal 107° × Vertical 56° × Diagonal 127°
• Iris Type: Fixed
• Close Focus Distance: 2.8 mm: 1.5 m (4.9 ft)
• DORI Distance:
  • Detect: 87.7m
  • Observe: 35.1m
  • Recognize: 17.5m
  • Identify: 8.8m

Professional, intelligent

• IVS (Perimeter Protection): Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
• Intelligent Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
• Smart Codec: Smart H.265+/Smart H.264+
• Video Frame Rate:
  • Main stream:
    • 3840 × 2160 @(1–20 fps by default)
    • 3840 × 2160 @(1–25/30 fps with AI function disabled)
  • Sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
  • Third stream:1280 × 1080 @ (1–25/30 fps)
• Stream Capability: 3 streams
• Resolution: 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control: CBR/VBR
• Video Bit Rate
  • H.264: 32 kbps–8192 kbps
  • H.265: 12 kbps–8192 kbps
• Day/Night: Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 120 dB
• Scene Self-adaptation (SSA): Yes
• White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
• Gain Control: Auto/Manual
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas)
• Region of Interest (RoI): Yes (4 areas)
• Smart Illumination: Yes
• Image Rotation: 0°/90°/180°/270° (Support with 1920 × 1080 resolution and lower)
• Mirror: Yes
• Privacy Masking: 4 areas

Audio

• Built-in MIC: Yes
• Audio Compression: PCM, G.711a, G.711Mu, G726

Alarm

• Alarm Event
• No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)importing)

Network

• Network: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
• Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
• Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
• User/Host: 20 (Total bandwidth: 80 M)
• Storage: FTP; SFTP; Micro SD card (support max. 256 G); NAS
• Browser:
  • IE: IE8 and later
  • Chrome
  • Firefox
  • Safari: Safari 12 and later
• Management Software: Smart PSS; DSS; DMSS
• Mobile Phone: IOS; Android

Certification

• Certification
  • CE-LVD: EN62368-1
  • CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
  • FCC: 47 CFR FCC Part 15, Subpart B

Port

• Audio Input: 1 channel (RCA port)
• Audio Output: 1 channel (RCA port)
• Alarm Input: 1 channel in: 5mA 3V–5V DC
• Alarm Output: 1 channel out: 300mA 12V DC

Power

• Power Supply: 12V DC/PoE (802.3af)
• Power Consumption: Basic power consumption: 3.1W (DC12V); 3.5W (POE)Max. power consumption (WDR + H.265 + red and blue lights flashing alternately + warm light + sound alarm): 7.8W (DC12V); 8.2W (POE)

Environment

• Operating Conditions: –40°C to +60°C (–40°F to +140°F)/Less than 95% RH
• Storage Conditions: –40°C to +60°C (–40°F to +140°F)
• Protection Grade: IP67

Structure

• Casing: Metal
• Dimensions: Φ122.0 mm × 110.9 mm (4.8″ × 4.4″)
• Net Weight: 754 g (1.7 lb)
• Gross Weight: 915 g (2.0 lb)
