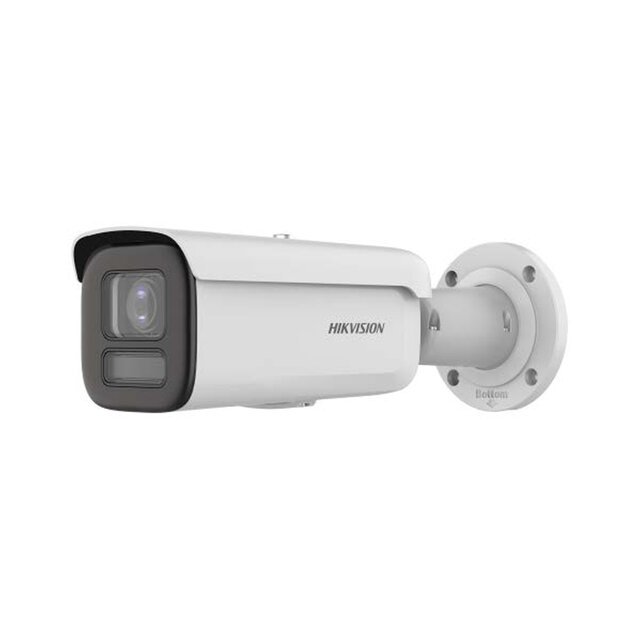

HIKVISION 4MP COLORVU BULLET VARIFOCAL 2.8-12MM + AUDIO/ALAR

Model: Hikvision DS-2CD2647G2T-LZS

4 MP ColorVu Motorized Varifocal Bullet Network Camera

Features

Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high performance sensors. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.

• High quality imaging with 4 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• 24/7 colorful imaging
• Clear imaging against strong backlight due to 130 dB WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Efficient H.265+ compression technology
• Water and dust resistant (IP67) and vandal resistant (IK10)

Specifications

Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
• Day & Night: 24/7 color imaging

Lens

• Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV:
  • 2.8 to 12 mm, horizontal FOV 105.4° to 56.4°, vertical FOV 53.9° to 31.6°, diagonal FOV
  • 131.8° to 65.1°
• Lens Mount: Integrated
• Iris Type: DC iris
• Aperture: F1.0
• Depth of Field: 1.9 m to ∞

DORI

• DORI D: 66.8 m to 110.4 m, O: 26.5 m to 43.8 m, R: 13.4 m to 22.1 m, I: 6.7 m to 11 m

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: Up to 60 m
• Smart Supplement Light: Yes

Video

• Main Stream
  • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    *Third stream is supported under certain settings.
• Video Compression:
  • Main stream: H.265/H.264/H.265+/H.264+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
    *Third stream is supported under certain settings.
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region(s) for main stream and sub-stream

Audio

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
• User/Host:
  • Up to 32 users
  • 3 user levels: administrator, operator, and user
• Security:
  • Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network
  • Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS
  • 1.1/1.2/1.3, host authentication (MAC address)
• Network Storage:
  • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  • Plug-in required live view: IE 10+
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+


• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 130 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 regions of privacy mask

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Audio:
  • 1 input (line in), 2-core terminal block, max. input amplitude: 3.3 Vpp, input – impedance: 4.7 KΩ, interface type: non-equilibrium
  • 1 output (line out), 2-core terminal block, max. output amplitude: 3.3 Vpp, output – impedance: 100 Ω, interface type: non-equilibrium
• Alarm: 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
• Reset Key: Yes

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, trigger alarm output, white light flashing

Deep Learning Function

• Face Capture Yes

General

• Power
  • 12 VDC ± 25%, 1.21 A, max. 14.5 W, two-core terminal block, reverse polarity protection
  • PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.43 A to 0.32 A, max. 18 W
• Dimension: 298 mm × 97.9 mm × 95.7 mm (11.7″ × 3.9″ × 3.8″)
• Package Dimension: 385 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)
• Weight Approx.: 1465 g (3.2 lb.)
• With Package Weight Approx.: 2097 g (4.6 lb.)
• Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter

Approval

• EMC:
  • FCC: 47 CFR Part 15, Subpart B
  • CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN
  • 50130-4: 2011 + A1: 2014
  • RCM: AS/NZS CISPR 32: 2015
  • IC: ICES-003: Issue 7
  • KC: KN32: 2015, KN35: 2015
• Safety:
  • UL: UL 62368-1
  • CB: IEC 62368-1: 2014 + A11
  • CE-LVD: EN 62368-1: 2014/A11: 2017
  • LOA: IEC/EN 60950-1
• Environment:
  • CE-RoHS: 2011/65/EU
  • WEEE: 2012/19/EU
  • Reach: Regulation (EC) No 1907/2006
• Protection
  • IP67: IEC 60529-2013
  • IK10: IEC 62262:2002
