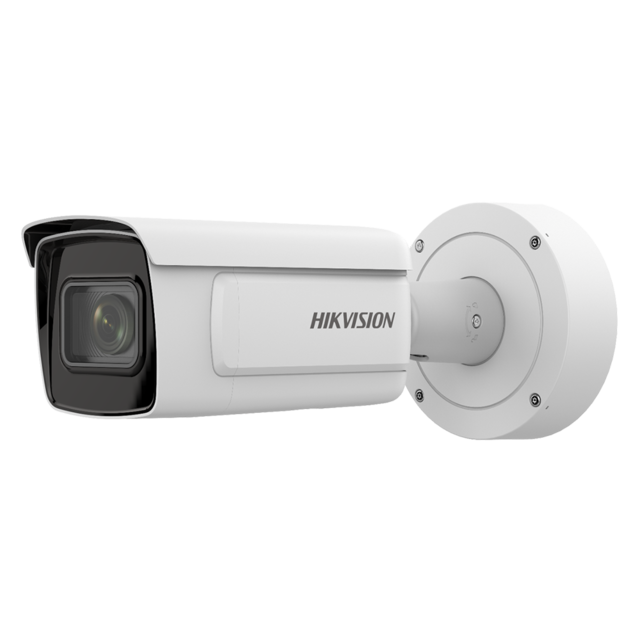

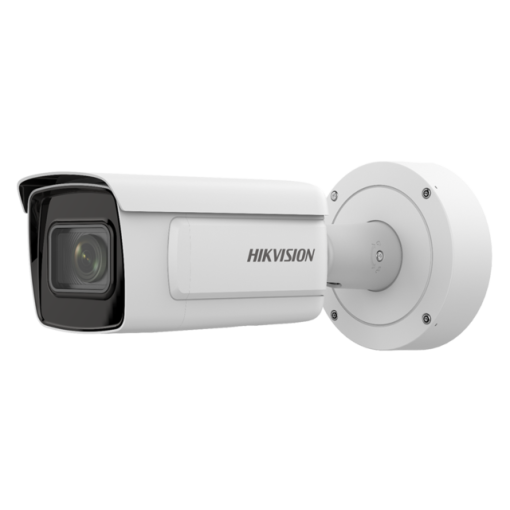

HIKVISION 4MP DEEPVIEW BULLET VARIFOCAL 2.8MM-12MM

Model: Hikvision iDS-2CD7A46G0/S-IZHS(2.8-12mm)(C)

4MP DeepinView Moto Varifocal Bullet Camera

Features

• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to 140 dB WDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Water and dust resistant (IP67) and vandal proof (IK10)

Specifications

Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination
  • Color: 0.0005 Lux @ (F1.2, AGC ON);
  • B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: 1 s to 1/100,000 s
• Day & Night:
  • IR cut filter
  • Blue glass module to reduce ghost phenomenon

Lens

• Focal Length & FOV: 2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
• Focus: Auto, semi-auto, manual
• Iris Type: P-iris
• Aperture: 2.8 to 12 mm: F1.2 to F2.5

DORI

• Wide: 2.8 to 12 mm: D: 60 m, O: 23.8 m, R: 12 m, I: 6 m
• Tele: 2.8 to 12 mm: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: 2.8 to 12 mm: 50 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream
  • 50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280× 720)
  • 60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280× 720)
• Sub-Stream
  • 50 Hz: 25 fps (704 × 480, 640 × 480)
  • 60 Hz: 30 fps (704 × 480, 640 × 480)
• Third Stream
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream
  • 50 Hz: 25 fps (704 × 480, 640 × 480)
  • 60 Hz: 30 fps (704 × 480, 640 × 480)
• Fifth Stream
  • 50 Hz: 25 fps (704 × 480, 640 × 480)
  • 60 Hz: 30 fps (704 × 480, 640 × 480)
• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
• H.265 Type: Baseline Profile/Main Profile/High Profile
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region Of Interest (ROI): 4 fixed regions for main stream, sub-stream, third stream, fourth stream and fifth stream
• Target Cropping: Yes

Audio

• Audio Type: Mono sound
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
• Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) /8 to 320 Kbps (MP3)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Simultaneous Live View: Up to 20 channels
• API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
• User/Host:
  • Up to 32 users
  • 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
• Network Storage:
  • NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200, Hik-Connect
• Web Browser:
  • Plug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11
  • Plug-in free live view: Chrome 45.0+, Firefox 52.0+
  • Not recommended: Safari 11+, Edge


• Image Parameters Switch: Yes
• Image Settings: Saturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger
• Wide Dynamic Range (WDR): 140 dB
• Image Enhancement: BLC, HLC, Defog, 3D DNR
• SNR: ≥ 52 dB
• Privacy Mask: 8 programmable polygon privacy masks, mask color or mosaic configurable
• Image Stabilization: EIS
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface

• Video Output: 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
• Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Audio: With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
• Alarm: 2 input, 2 outputs (max. 24 VDC, 1 A)
• RS-485: With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset Key: Yes
• Power Output: With -Y: 12 VDC, max. 100 mA

Event

• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Deep Learning Function

• Perimeter Protection:
  • Line crossing, intrusion, region entrance, region exiting
  • Support alarm triggering by specified target types (human and vehicle)

General

• Power:
  • 12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block,
  • PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W
• Material: Aluminum alloy body
• Approx. 1950 g (4.2 lb.)
• With Package Weight
• Approx. 3070 g (6.7 lb.)
• Dimension
  • Without -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″)
  • With -Y: Ø140 × 351 mm (Ø5.5″ × 13.8″)
• Package Dimension: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
• Startup And Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, mirror, password protection, watermark, privacy mask, IP address filter, one-key reset, five streams
• Heater: Yes

Approval

• EMC:
  • FCC (47 CFR Part 15, Subpart B);
  • CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
  • RCM (AS/NZS CISPR 32: 2015);
  • IC (ICES-003: Issue 7);
  • KC (KN 32: 2015, KN 35: 2015)
• Safety:
  • UL (UL 62368-1);
  • CB (IEC 62368-1:2014+A11);
  • CE-LVD (EN 62368-1:2014/A11:2017);
  • BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);
  • LOA (IEC/EN 60950-1)
• Environment:
  • CE-RoHS (2011/65/EU);
  • WEEE (2012/19/EU);
  • Reach (Regulation (EC) No 1907/2006)
• Protection:: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
• Anti-Corrosion Protection: With -Y: NEMA 4X(NEMA 250-2018)
• Automotive And Railway: EN50121-4
• Other: PVC FREE
