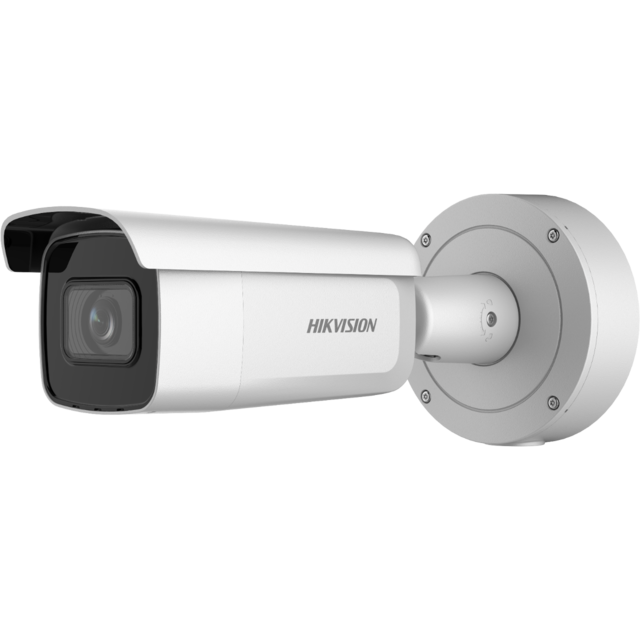

HIKVISION 5MP VARIFOCAL BULLET 7-35MM + AUDIO/ALARM

Model: Hikvision DS-2CD3656G2-IZS(7-35mm)(C)

5 MP AcuSense Varifocal Bullet Network Camera

Features

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.

• High quality imaging with 5 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• False alarm reduction through human and vehicle target classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP67) and vandal-resistant (IK10)
• Motorized varifocal lens for easy installation and monitoring

Specifications

Camera

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Max. Resolution: 2592 × 1944
• Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100, 000 s
• Day & Night: IR cut filter
• Angle Adjustment Pan: 0°to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Lens Type: Varifocal lens, motor-driven lens, 2.7 to 13.5 mm and 7 to 35 mm optional
• Focal: Length & FOV: 7 to 35 mm: horizontal FOV 28° to 10°, vertical FOV 21° to 8°, diagonal FOV 35° to 13°
• Lens Mount: 7 to 35 mm: Integrated
• Iris Type: Auto-iris
• Aperture: 7 to 35 mm: F1.6

DORI

• DORI: 7 to 35 mm: D: 200 to 580 m, O: 79 to 230 m, R: 40 to 116 m, I: 20 to 58 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: 7 to 35 mm: up to 80 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream
  • 50 Hz:
    • 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz:
    • 24 fps (2592 × 1944)
    • 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    *Third stream is supported under certain settings.
• Fourth Stream
  • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
    *Fourth stream is supported under certain settings.
• Video Compression:
  • Main stream: H.265/H.264/H.264+/H.265+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
  • Fourth stream: H.265/H.264/MJPEG
    *Third stream and fourth stream are supported under certain settings.
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 5 fixed regions for main stream and sub-stream
• Target Cropping: Yes

Audio

• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage:
  • MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  • Plug-in required live view: IE 10+
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+


• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Audio:
  • 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance:
  • 4.7 KΩ, interface type: non-equilibrium;
  • 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Reset Key: Yes

Event

• Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection
• Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning

Deep Learning Function

• Face Capture: Yes
• Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection

General

• Power:
  • 12 VDC ± 25%, 1.08 A, max. 13 W, two-core terminal block
  • PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W
• Dimension: Ø 144 mmm× 333 mm (Ø 5.7″ × 13.1″)
• Package Dimension: 385 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)
• Weight: Approx. 1435 g (3.2 lb.)
• With Package Weight: Approx. 2576 g (5.7 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Web Client Language: 33 languages
• English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

• EMC:
  • FCC SDoC (47 CFR Part 15, Subpart B);
  • CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
  • RCM (AS/NZS CISPR 32: 2015);
  • IC VoC (ICES-003: Issue 6, 2016);
  • KC (KN 32: 2015, KN 35: 2015)
• Safety:
• UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014);
• CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015); LOA (IEC/EN 60950-1)
• Environment:
  • CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
  • Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
