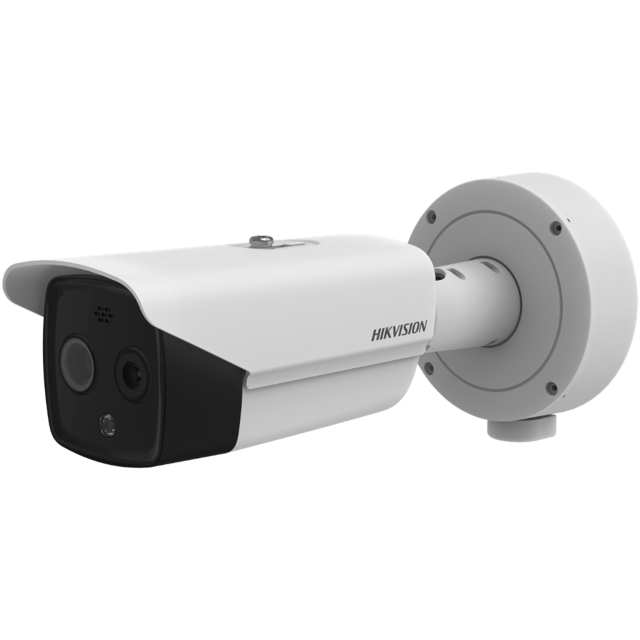

HIKVISION THERMAL BULLET CAMERA 3MM

Model: Hikvision DS-2TD2617-3/QA

Thermal & Optical Bi-spectrum Network Bullet Camera

Features

Hikvision DS-2TD2617-3/QA Thermographic Network Bullet Camera can be applied to substations, hydropower stations, waste incineration plants, manufacturing workshops, etc. The accurate temperature measurement device sends temperature exception alarms for loss prevention.

• 160 × 120 resolution, 17 μm, VOx UFPA, NETD < 40 mK (5 °C, F# = 1.1)
• High accuracy temperature exception alarm, – 20 °C to 150 °C (- 4 °F to 302 °F), ± 8 °C (± 14.4 °F)
• Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR

Specifications

Thermal Module

• Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
• Resolution: 160 × 120
• Pixel Pitch: 17 μm
• Spectral Range: 8 μm to 14 μm
• NETD: < 40 mK (@ 25 °C, F# = 1.1)
• Focal Length: 3.1 mm
• IFOV: 5.48 mrad
• Field of View: 50.0° × 37.2° (H × V)
• Min. Focusing Distance: 0.2 m
• Aperture: F1.1
• Digital Zoom: × 2, × 4

Optical Module

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Resolution: 2688 × 1520
• Min. Illumination: Color: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
• Shutter Speed: 1 s to 1/100,000 s
• Focal Length: 4 mm
• Field of View: 84.0° × 44.8° (H × V)
• Aperture (Range): F1.6
• WDR: 120 dB

Image Effect

• Target Coloration: Yes. Supported in white hot and black hot mode.

Illuminator

• IR Distance Up to 40 m
• IR Intensity and Angle: Automatically adjusted

Audible and Visual Alarm

• White Light Range: Up to 40 m
• Visual Alarm: Yes. White light alarm with adjustable flashing frequencies
• Audio alarm:
  • Yes, for two types of audible alarm (VCA and Temperature Exception)
  • 2 preset voice alerts (one for each)
  • 6 importable user-defined voice alerts (6 options shared in the two types)

Smart Function

• VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
• Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
• Temperature Range – 20 °C to 150 °C (- 4 °F to 302 °F)
• Temperature Accuracy ± 8 °C (± 14.4 °F)

Video and Audio

• Main Stream
  • Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
  • Optical:
    • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    • 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-stream
  • Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240)
  • Optical:
    • 50 Hz: 25 fps (704 × 576, 352 × 288)
    • 60 Hz: 30 fps (704 × 480, 352 × 240)
• Video Compression:
  • Main Stream: H.265/H.264
  • Sub-Stream: H.265/H.264/MJPEG
• Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

Network

• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T)
• Simultaneous Live View: Up to 20 channels
• User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
• Security: User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
• Client: iVMS-4200, Hik-Connect
• Web Browser:
  • Live view (plug-in allowed): Internet Explorer 11
  • Live view (plug-in free): Chrome 57.0 +, Firefox 52.0 +
  • Local service: Chrome 57.0 +, Firefox 52.0 +

Interface

• Alarm Input: 2, alarm input (0-5 VDC)
• Alarm Output: 2, alarm output (alarm response actions configurable)
• Alarm Action: recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input:
  • 1, 3.5 mm Mic in/Line in interface
  • Line input: 2-2.4 V [p-p], output impedance: 1 KΩ ± 10%
• Audio Output: Linear level, impedance: 600 Ω
• Communication Interface:
  • 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
  • 1, RS-485 interface (half duplex)
• Analog Output: 1.0 V [p-p]/75 Ω, PAL/NTSC/BNC

General

• Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power Supply:
  • 12 VDC ± 25%, φ 5.5 mm coaxial power plug
  • PoE (802.3af, class 3)
• Power Consumption:
  • 12 VDC ± 25%: 0.5 A, Max. 6 W
  • PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max. 6.5 W
• Working Temperature/Humidity:
  • Temperature: – 40 °C to 65 °C (- 40 °F to 149 °F)
  • Humidity: 95% or less
• Protection Level:
  • IP66 Standard
  • TVS 6000V lightning protection, surge protection, voltage transient protection
• Dimensions: 358.3 mm × 113.5 mm × 115.2 mm (14.10″ × 4.47″ × 4.35″)
• Weight: Approx. 1.76 kg (3.88 lb)
