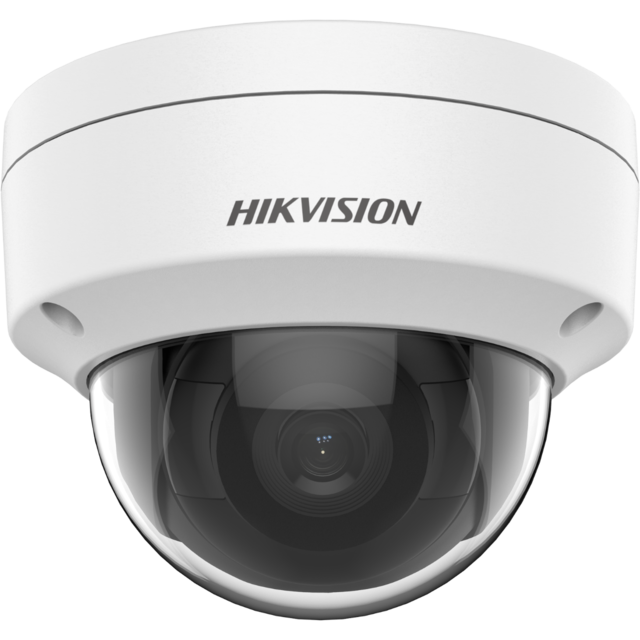

HIKVISION 4 MEGAPIXEL 2.8MM LENS OUTDOOR DOME CAMERA

Model: Hikvision DS-2CD1143G0-I

4MP Fixed Dome Network Camera

Features

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120 dB WDR
• Water and dust resistant (IP67) and vandal resistant (IK10)
• EXIR 2.0: advanced infrared technology with long IR range

Specifications

Camera

• Image Sensor: 1/3″ progressive scan CMOS
• Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
• Shutter Speed: 1/3 s to 1/100, 000 s
• Slow Shutter: Yes
• Day &Night: IR cut filter
• Wide Dynamic Range: 120 dB
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°
• DNR: 3D DNR

Lens

• Lens: 2.8 mm
• Aperture: F2.0
• Focus: Fixed
• FOV: 2.8 mm, horizontal FOV 98°, vertical FOV 53°, diagonal FOV 115°
• Lens Mount: M12

Illuminator

• IR Range: Up to 30 m
• Wavelength: 850 nm

Video

• Max. Resolution: 2560 × 1440
• Video Compression:
  • Main stream: H.265/H.264
  • Sub-stream: H.265/H.264/MJPEG
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Video Bit Rate: 32 Kbps to 8 Mbps

Smart Feature-Set

• Region Of Interest: 1 fixed region for main stream


• Image Enhancement: HLC, BLC, 3D DNR
• Image Setting: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Auto/Schedule/Day/Night
• Main Stream Max. Frame Rate:
  • 50Hz: 20 fps (2560 × 1440)
  • 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
  • 60Hz: 20 fps (2560 × 1440)
  • 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub-Stream Max. Frame Rate:
  • 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour
• API: Open Network Video Interface (Profile S), ISAPI, SDK
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users, 3 levels: Administrator, Operator and User
• Client: iVMS-4200, Hik-Connect, iVMS-5200
• Web Browser:
  • Plug-in required live view: IE 10, IE 11
  • Local service: Chrome 57.0+, Firefox 52.0+
• Alarm Trigger: Motion detection, video tampering, exception (network disconnected, IP address conflict, illegal login, HDD error)

Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Approval

• Impact Protection: IK10TVS 2000V lightning protection, surge protection and voltage transient protection

Compression Standard

• H.264+: Main stream supports
• H.265+: Main stream supports

General

• Firmware Version: V5.5.111
• Web Client Language: English, Ukrainian
• General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
• Power Supply:
  • 12 VDC ± 25%
  • PoE: 802.3af, Class 3
• Material: Aluminum alloy body
• Dimensions:
  • Camera: Ø111 mm × 82.4 mm (Ø4.4″ × 3.2″)
  • With package: 134 mm × 134 mm × 108 mm (5.3 × 5.3″ × 4.3″)”
  • Camera: approx. 360 g (0.8 lb.)
  • With package: approx. 560 g (1.2 lb.)
• Power Consumption And Current:
  • 12 VDC, 0.4 A, max. 5 W
  • PoE (802.3af, 36 V to 57 V), 0.20 A to 0.15 A, max. 6.5 W
• Interface Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
