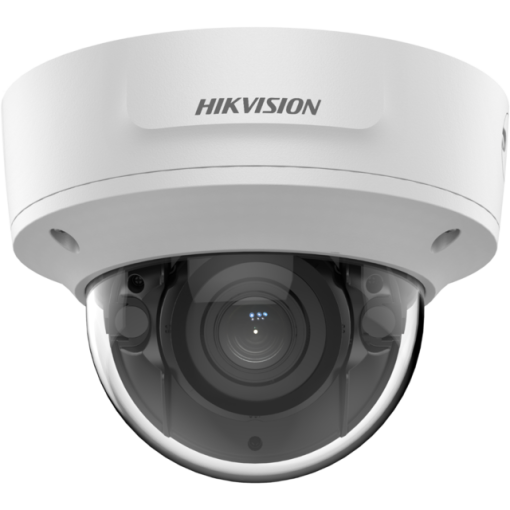

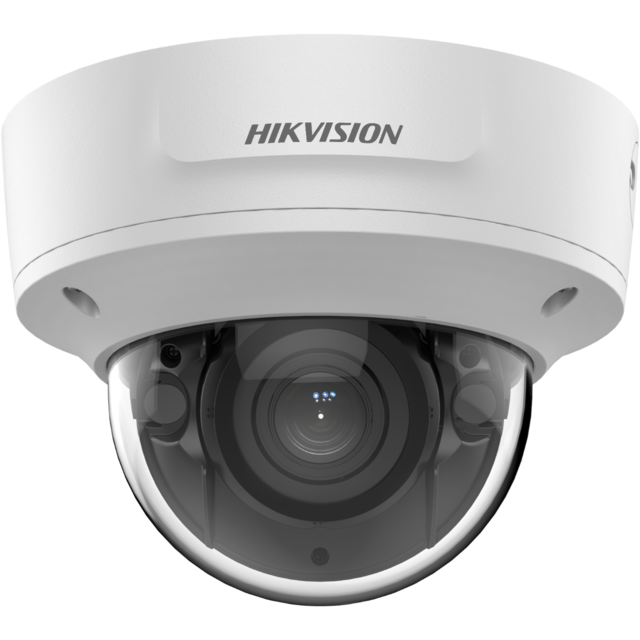

HIKVISION 4MP DOME VARIFOCAL 2.8-12MM + AUDIO/ALARM

Model: Hikvision DS-2CD2743G2-IZS (2.8-12mm)

4 MP Vandal Motorized Varifocal Dome Network Camera

Features

• High quality imaging with 4 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Clear imaging against strong backlight due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Water and dust resistant (IP67) and vandal proof (IK10)

Specifications

Camera

• Image Sensor: 1/3″ Progressive Scan CMOS
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• P/N: P/N
• Wide Dynamic Range: 120 dB
• Day & Night: ICR Cut
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

• Lens Type & FOV: 2.8 to 12 mm, horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.6° to 33.4°
• Aperture: F1.6
• Lens Mount: Ø14

DORI

• DORI: 2.8 to 12 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m

Illuminator

• IR Range: Up to 40 m
• Wavelength: 850 nm

Video

• Max. Resolution: 2688 × 1520
• Main Stream:
  • 50Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub Stream:
  • 50Hz: 25 fps (640 × 480, 640 × 360)
  • 60Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream:
  • 50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression:
  • Main stream: H.265/H.264/H.264+/H.265+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main Stream supports
• H.265+: Main Stream supports
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): Yes
• Region Of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)

Network

• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication
  for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  • Plug-in required live view: IE 10, IE 11
  • Plug-in free live view : Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+


• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Parameters Switch: Yes
• Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

• Audio:
  • -S: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
  • 1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm: -S: 1 input, 1 output (max. 12 VDC, 30 mA)
• On-Board Storage: Built-in micro SD, up to 256 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Event

• Basic Event: Motion detection (human and vehicle), video tampering alarm, exception
• Smart Event: Line crossing detection, intrusion detection
• Face Detection: Yes

General

• Linkage Method: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email
• Web Client Language:
  • 33 languages
  • English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French,
    Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish,
    Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply:
  • 12 VDC ± 25%, reverse polarity protection
  • PoE: 802.3af, Class 3
• Power Consumption And Current:
  • 12 VDC, 0.88 A, max. 10.5 W
  • PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W
• Power Interface: Ø5.5 mm coaxial power plug
• Material:
  • Upper cover and base: metal
  • Bubble: plastic
• Screw Material: SUS304
• Camera Dimension: Ø153.3 × 111.6 mm (Ø6.1″ × 4.4″)
• Package Dimension: 244 × 174 × 173 mm (9.7″ × 6.9″ × 6.9″)
• Camera Weight: Approx. 880 g (1.9 lb.)
• With Package Weight: Approx. 1419 g (3.1 lb.)

Approval

• EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
