HIKVISION 4MP COLORVU PTZ 10x ZOOM 4.0MM + MICRO/AUDIO/POE

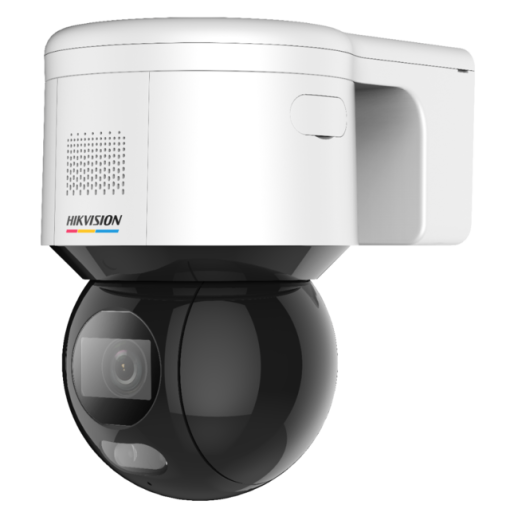

Model: Hikvision DS-2DE3A400BW-DE

3-inch 4 MP ColorVu Network Speed Dome – 16x Digital Zoom

Features

• Focuses on human and vehicle targets classification based on deep learning
• Face capture: automatic selection of best shot; up to 5 faces detected and captured at the same time
• Linked audible and visual alarm. Built-in microphone and speaker
• Up to 2560 × 1440 @ 30 fps
• Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
• 24/7 colorful imaging with low power consumption. Up to 30 m white light distance
• 120 dB WDR, 3D DNR, HLC, EIS
• IP66; PoE

Specifications

Camera

• Image Sensor: 1/1.8″ progressive scan CMOS
• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
• Shutter Speed: 1/1 to 1/30,000 s
• Day & Night: 24/7 colorful imaging
• Zoom: 16x digital
• Max. Resolution: 2560 × 1440

Lens

• Focal Length: 4 mm
• FOV:
  • Horizontal field of view: 88.7°
  • Vertical field of view: 46.5°
  • Diagonal field of view: 105.0°
• Aperture: F1.0

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: White Light Distance: up to 30 m

PTZ

• Movement Range (Pan): 350°
• Movement Range (Tilt): 0° to 90°
• Pan Speed: Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
• Tilt Speed: Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
• Proportional Pan: Yes
• Presets: 300
• Power-Off Memory: Yes
• Park Action: Preset, patrol scan
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Preset Freezing: Yes
• Scheduled Task: Preset, patrol scan, dome reboot, dome adjust, aux output

Video

• Main Stream:
  • 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
  • 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
  • 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream:
  • 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
  • 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Video Compression:
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264/MJPEG
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region Of Interest (ROI): 8 fixed regions for each stream

Audio

• Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
• Environment Noise Filtering: Yes

Network

• Network Storage: NAS (NFS, SMB/ CIFS)
• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• API: ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G, Profile T), ISUP
• Simultaneous Live View: Up to 20 channels
• User/Host: Up to 32 users. 3 levels: Administrator, Operator and User
• Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
• Web Browser: IE 10+, Chrome 57+, Firefox 52+, Safari 12+


• Day/Night Switch: Day, night, auto, scheduled-switch
• Image Enhancement: BLC, HLC, 3D DNR
• Wide Dynamic Range (WDR): 120 dB WDR
• Defog: Digital defog
• Image Stabilization: EIS
• Regional Exposure: Yes
• Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Image Parameters Switch: Yes
• Privacy Mask: Up to 24 masks (8 masks for each scene)
• SNR: ＞52 dB

Interface

• Built-In Speaker: 1 built-in speaker
• Power Output: 12 VDC; < 60 mA
• Ethernet Interface: 1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)
• On-Board Storage: Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB
• Alarm: 1 input, 1 output
• Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
• RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset: Yes

Event

• Basic Event: Video tampering alarm, motion detection, alarm input, alarm output, exception
• Smart Event: Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection
• Alarm Linkage: Preset, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audible warning, white light flashing

Deep Learning Function

• Face Capture: Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture
• Perimeter Protection:
  • Line crossing, intrusion, region entrance, region exiting
  • Support alarm triggering by specified target types (human and vehicle)

General

• General Function: Mirror, password protection, watermark, IP address filter
• Power:
  • 12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A
  • Max. 14 W (including max. 4 W for white light)
• Operating Condition: Humidity: ≤ 90%, temperature: -30℃ to 65℃ (-22°F to 149°F)
• Demist: Yes
• Dimension: 179.3 mm × 120 mm × 182 mm (7.06″ × 4.72″ × 7.71″)
• Weight: Approx. 1.125 kg (2.48 lb.)

Approval

• Protection: IP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
