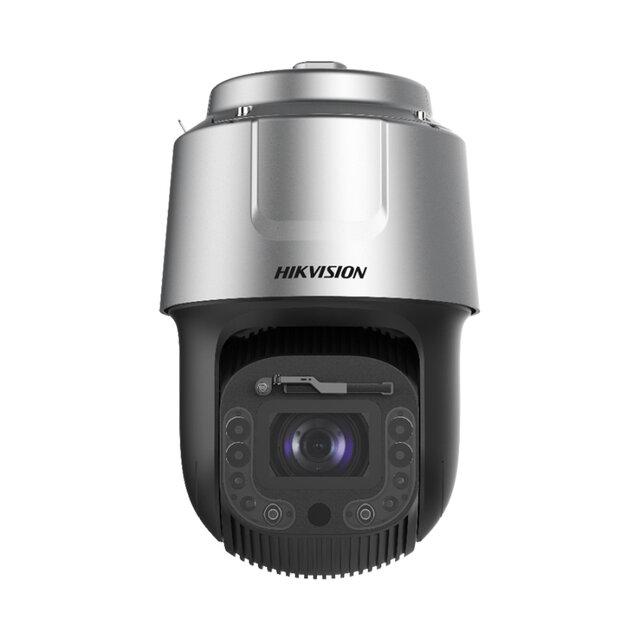

HIKVISION 8MP 42X ZOOM PTZ VARIFOCAL 7.5-315MM

Model: Hikvision DS-2DF8C842IXS-AELW(T5)

8-inch 4K 42X DarkFighter IR Network Speed Dome

Features

• 1/1.2＂ progressive scan CMOS
• High quality imaging with 8 MP resolution
• Excellent low-light performance with DarkFighter technology
• 42× optical zoom and 16× digital zoom provide close up views over expansive areas
• Expansive night view with up to 500 m IR distance
• Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window
• Supports face capture to detect, capture, grade, and select faces in motion
• Supports road traffic to detect vehicles

Specifications

Camera

• Image Sensor: 1/1.2＂ progressive scan CMOS
• Min. Illumination: Color: 0.002 Lux @(F1.6, AGC ON),B/W: 0.0002 Lux @(F1.6, AGC ON),0 Lux with IR
• Shutter Speed: 1/1 s to 1/30,000 s
• Slow Shutter: Yes
• Day & Night: IR cut filter
• Zoom: 42x optical, 16x digital
• Max. Resolution: 3840 × 2160

Lens

• Focus: Auto, semi-auto, manual, rapid focus
• Focal Length: 7.5 mm to 315 mm, 42 × Optical
• Zoom Speed: Approx. 7.5 s
• FOV:
  • Horizontal field of view: 60.4° to 1.7° (wide-tele),
  • Vertical field of view: 36.2° to 0.9° (wide-tele),
  • Diagonal field of view: 67.8° to 2.2° (wide-tele)
• Aperture: Max. F1.6

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: up to 500 m
• Smart Supplement Light: Yes

PTZ

• Movement Range (Pan): 360°
• Movement Range (Tilt): -20° to 90° (auto flip)
• Pan Speed: Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
• Tilt Speed: Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
• Proportional Pan: Yes
• Presets: 300
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
• Power-Off Memory: Yes
• Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Preset Freezing: Yes
• Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

• Main Stream:
  • 50 Hz: 25 fps (3840 × 2160，2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
  • 60 Hz: 24 fps (3840 × 2160，2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
  • 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream:
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
  • 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Video Compression:
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16384 Kbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Typ: Main Profile
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region Of Interest (ROI): 8 fixed regions for each stream

Audio

• Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
• Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)

Network

• Network Storage: NAS (NFS, SMB/ CIFS), ANR
• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• API: ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T)
• Simultaneous Live View: Up to 20 channels
• User/Host: Up to 32 users 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
• Client: HikCentral, iVMS-4200, Hik-Connect
• Web Browser: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+


• Day/Night Switch: Day, night, auto, scheduled-switch
• Image Enhancement: BLC, HLC, 3D DNR
• Wide Dynamic Range (WDR): 140 dB
• Defog: Optical defog
• Image Stabilization: EIS (Built-in gyroscope to improve EIS performance)
• Regional Exposure: Yes
• Regional Focus: Yes
• Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Image Parameters Switch: Yes
• Privacy Mask: Up to 24 masks, mosaic mask, mask color configurable, rectangle region
• SNR: ≥ 52 dB

Interface

• Video Output: 1.0 V[p-p]/75 Ω, PAL, NTSC, BNC connector
• Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
• Alarm: 7 inputs, 2 outputs
• Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
• RS-485: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Event

• Basic Event: Audio exception, motion detection, video tampering alarm, alarm input, alarm output, exception
• Smart Event: Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, vandal-proof alarm, audio exception detection
• Smart Tracking: Manual tracking, auto-tracking
• Alarm Linkage: Preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, NAS video recording

Deep Learning Function

• Face Capture: Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face
• Face Comparison: Yes
• Perimeter Protection:
  • Line crossing, intrusion, region entrance, region exiting
  • Support alarm triggering by specified target types (human and vehicle)

Road Traffic And Vehicle Detection

• Road Traffic: Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)

General

• Operating Condition: Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Power Consumption And Current: 24 VAC (Max. 62 W, including max. 12 W for IR and max. 8 W for heater), PoE 802.3 bt (Max. 51 W, including max. 12 W for IR and max. 8 W for heater)
• Wiper: Yes. Rain-sensing auto control
• Dimension:
  • Ø 267 mm × 430 mm (Ø 10.51″ × 16.93″)
  • Approx. 9.6 kg (21.16 lb.)

Approval

• EMC:
  • FCC SDoC (47 CFR Part 15, Subpart B);
  • CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
  • RCM (AS/NZS CISPR 32: 2015);
  • IC VoC (ICES-003: Issue 6, 2019);
  • KC (KN 32: 2015, KN 35: 2015)
• Safety:
  • UL (UL 62368-1)
  • CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
  • CE-LVD (EN 62368-1:2014+A11:2017),
  • BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
  • LOA (SANS IEC60950-1)
• Environment:
  • CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
  • Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 Standard, IK10 (IEC 62262:2002), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
