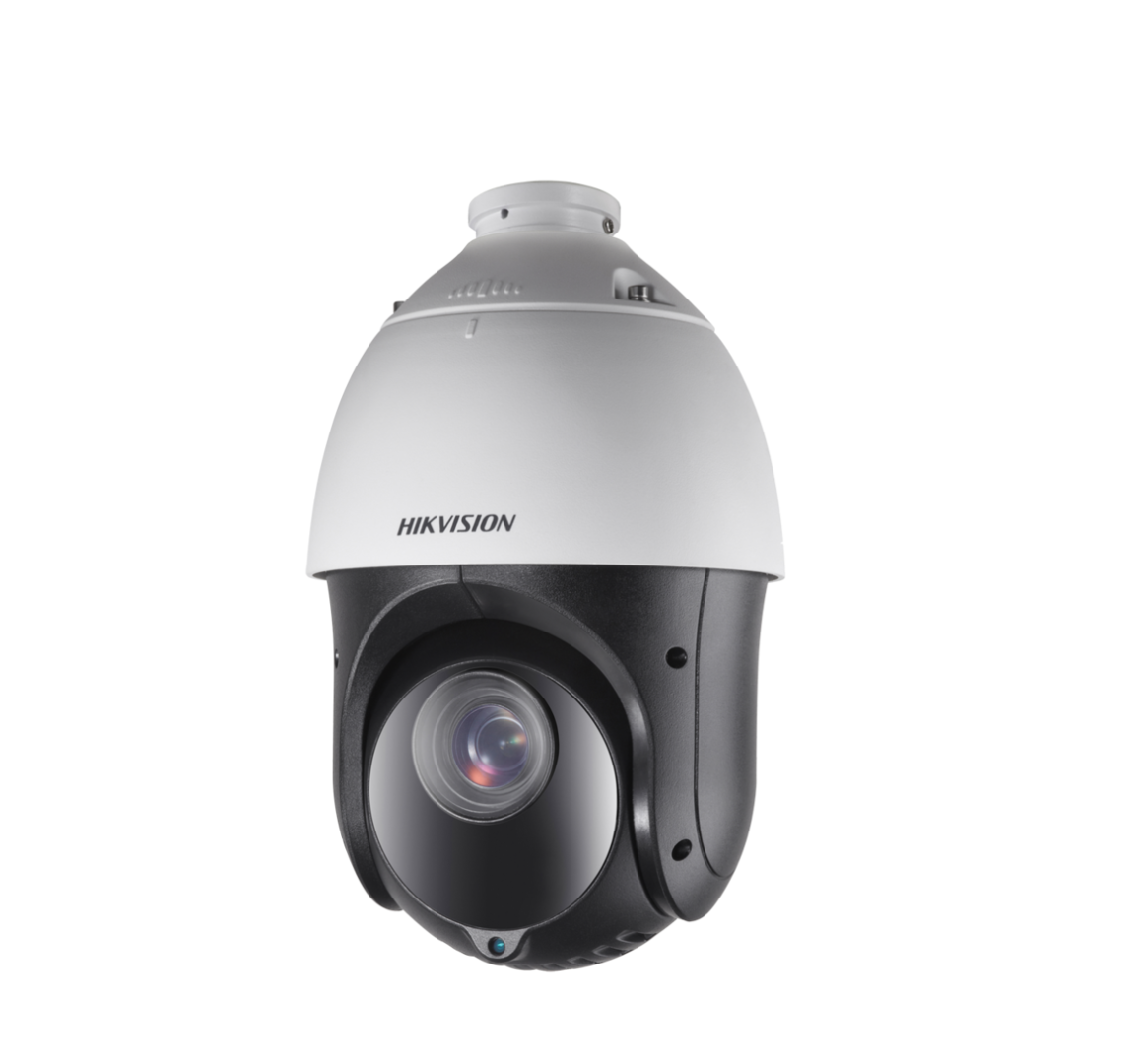

HIKVISION 2MP PTZ 15X ZOOM VARIFOCAL 5.0-75MM + BRACKET

Model: Hikvision DS-2DE4215IW-DE(D)

2MP 15X Network IR PTZ Camera with DS-1618ZJ Bracket Included

Features

• 1/2.8″ progressive scan CMOS
• Up to 1920 × 1080@30fps resolution
• Min. illumination:
• 0 Lux with IR
• 15× optical zoom, 16× digital zoom
• WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
• Up to 100 m IR distance
• 12 VDC & PoE+ (802.3 at, class4)
• Support H.265+/H.265 video compression

• Color: 0.005 Lux @(F1.6, AGC ON)
• B/W: 0.001 Lux @(F1.6, AGC ON)

Specifications

Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Effective Pixels: 1920(H)x1080(V)
• Signal System: PAL/NTSC
• Minimum Illumination:Color: 0.005 Lux @(F1.6, AGC ON)
  • B/W: 0.001Lux @(F1.6, AGC ON)
  • 0 Lux with IR
• White Balance: Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• AGC: Auto/Manual
• BLC: ON/OFF
• HLC: Support
• Smart defog: Support
• WDR: 120dB
• Shutter Time:
  • 50Hz: 1/1 s to 1/30,000 s
  • 60Hz: 1/1 s to 1/30,000 s
• Day& Night: ICR
• Digital Zoom: 16X
• Privacy Mask: 24 programmable privacy masks
• Auto Focus: Auto / Semi-automatic / Manual

Lens

• Focal Length: 5 mm to 75 mm, 15× optical zoom
• Zoom Speed: Approx. 2.3 s (optical lens, wide-tele)
• Field of View: Horizontal field of view: 53.8° to 4° (Wide-Tele)
  • Vertical field of view: 31.9° to 2.3° (Wide-Tele)
  • Diagonal field of view: 60.4° to 4.6° (Wide-Tele)
• Minimum Working Distance: 10 mm to 1500 mm (wide-tele)
• Aperture Range: F1.6 to F2.8

Pan & Tilt

• Pan Range: 360°endless
• Pan Speed: Configurable, from 0.1°/s to 80°/s,
  • Preset speed: 80°/s
• Tilt Range: -15°-90° (Auto Flip )
• Tilt Speed: Configurable, from 0.1°/s to 80°/s,
  • Preset speed: 80°/s
• Number of Preset: 300
• Patrol: 8 patrols, up to 32 presets per patrol
• Pattern: 4 pattern scans, record time over 10 minutes for each scan
• Power-off Memory: Support
• Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• PTZ Position Display: ON/OFF

Infrared

• IR Distance: 100m
• IR irradiation angle: Adjustable by zoom

Network

• Ethernet: 1 RJ45 self-adaptive 10 M/100 M Ethernet Interface
• Max.Image Resolution: 1920×1080
• Main Stream:
  • 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ;
  • 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)
• Sub Stream:50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)
• Third Stream:
  • 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288)
  • 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288)
• Video Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264/MJPEG
• ROI encoding: Main stream, sub-stream, and third stream respectively support four fixed areas.
• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• Simultaneous Live View: Up to 20 channels
• Three-Stream: Support
• Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
• User/Host: Up to 32 users, 3 levels: Administrator, Operator and User
• Security Measures: User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering

Client GUI

• Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
• Web Browser: IE 8 to 11,Chrome 31.0+, Firefox 30.0+, Edge 16.16299+

General

• Language:32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
  Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power Supply: 12VDC, PoE+
• Power Consumption: Max.: 18 W (Max. 7 W for IR)
• Working Temperature/Humidity: -30°C to 65°C (-22°F to 149°F)
  • 90% or less
• Protection Level: IP66 standard (outdoor dome)
  • TVS 4,000V lightning protection, surge protection and voltage transient protection
• Material: ADC 12, PC, PC+10%GF
• Dimensions: Φ 164.5 mm × 290 mm (Φ 6.48″ × 11.42″)
• Weight (approx.): Approx. 2 kg (4.41 lb)
• DS-1618ZJ Bracket included
