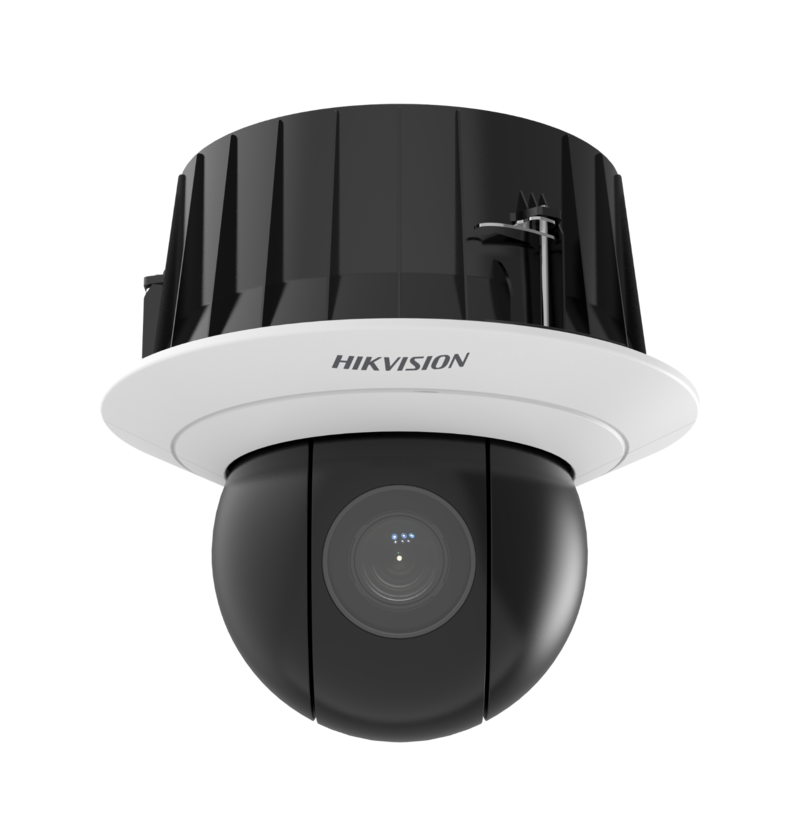

HIKVISION 8MP 4K – 32X ZOOM PTZ VARIFOCAL 6.7-214.4MM

Model: Hikvision Solutions DS-2DF6A832X-DE3(T5)

6inch 4K 32X Powered by DarkFighter Network Speed Dome

Features

• 1/1.8″ Progressive Scan CMOS
• High quality imaging with 8 MP resolution
• Excellent low-light performance with DarkFighter technology
• 32× optical zoom and 16× digital zoom provide close up views over expansive areas
• 140dB WDR, 3D DNR, HLC
• Supports H.265+/H.265 video compression
• Captures every point fast even in critical events

Specifications

Camera

• Image Sensor: 1/1.8＂ progressive scan CMOS
• Min. Illumination: color: 0.002Lux @ (F1.5，AGC ON);B/W: 0.0002Lux @(F1.5，AGC ON)
• Shutter Speed: 1/1 s to 1/30,000 s
• Focus: auto;semi-auto;manual
• Day & Night: ICR
• BLC: yes
• WDR: 140 dB WDR
• HLC: yes
• 3D DNR: yes
• Regional Exposure: yes
• Regional Focus: yes
• Digital Zoom: 16x
• Optical Zoom: 32x
• Privacy Mask: up to 24 masks;polygon region ;mosaic mask ;mask color configurable
• DORI
  • Detect (25px/m): 2690 m
  • Observe (63px/m): 1067 m
  • Recognize (125px/m): 538 m
  • Identify (250px/m): 269 m
• General Function: mirror, password protection, watermark, IP address filter

Lens

• Focal Length: 6.7 mm to 214.4 mm, 32× optical
• Zoom Speed: approx. 4.5 s
• FOV:
  • Horizontal field of view: 56.6° to 2.0° (wide-tele),
  • Vertical field of view: 33.7° to 1.2° (wide-tele),
  • Diagonal field of view: 63.4° to 2.3° (wide-tele)
• Aperture: F1.5

PTZ

• Movement Range (Pan): 360°
• Movement Range (Tilt): -20° to 90° (auto flip)
• Pan Speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
• Tilt Speed: configurable from 0.1° to 240°/s, preset speed 400°/s
• Proportional Zoom: yes
• Presets: 300
• Patrol Scan: 8 patrols
• Pattern Scan: 4 pattern scans
• Power-Off Memory: yes
• Park Action: preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
• 3D Positioning: yes
• PTZ Status Display: yes
• Preset Freezing: yes
• Scheduled Task: preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

Video

• Max. Resolution: 3840 × 2160
• Main Stream
  • 50Hz: 25fps (3840 × 2160, 2560 × 1440, 1920×1080, 1280 × 960, 1280×720)
  • 60Hz: 24fps (3840 × 2160,2560 × 1440, 1920×1080, 1280 × 960, 1280×720)
• Sub-Stream
  • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
  • 60Hz: 24fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream
  • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),
  • 60Hz: 24fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Video Compression: H.265;H.264;MJPEG
• H.264 Type: baseline profile;main profile;high profile
• H.265 Type: main profile
• H.264+: yes
• H.265+: yes
• SVC: yes

Audio

• Audio Compression: G.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM

Smart Features

• Face Capture: yes
• Basic Event: alarm input and output;motion detection;video tampering alarm
• Smart Event: Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection;object removal detection;unattended baggage detection
• Smart Tracking: manual tracking;event tracking
• Smart Record: ANR;Dual-VCA
• Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Network

• Client: Hikcentral;Hik-Connect;iVMS-4200
• Web Browser: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
• Simultaneous Live View: Up to 20 channels
• User/Host: Up to 32 users,3 levels: Administrator, Operator and User
• Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

Interface

• Communication Interface: 1 RJ45 10 M/100 M Ethernet Interface; Hi-PoE
• On-Board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
• Alarm Input: 7 alarm inputs
• Alarm Output: 2 alarm outputs
• Audio Input: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
• Audio Output: 1 audio output, line level, impedance: 600 Ω
• RS-485: HIKVISION, Pelco-P, Pelco-D, self-adaptive

General

• Power
• 12 VDC, PoE
• Operating Conditions
• -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
• Dimensions
• Ø 290 mm × 274.8 mm (Ø 11.42″ × 10.82″)
• Approx. 3.8 kg (8.38 lb.)
• Web Client Language
• 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

• EMC
  • FCC SDoC (47 CFR Part 15, Subpart B);
  • CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
  • RCM (AS/NZS CISPR 32: 2015);
  • IC VoC (ICES-003: Issue 6, 2019);
• Safety
  • UL (UL 60950-1);
  • CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
  • CE-LVD (EN 60950-1:2006+A2:2013, IEC 62368-1:2014+A11:2017);
  • LOA (SANS IEC60950-1)
• Environment
  • CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
  • Reach (Regulation (EC) No 1907/2006)
• Protection
  • Lightning Protection, Surge Protection and Voltage Transient Protection,
  • ±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5
