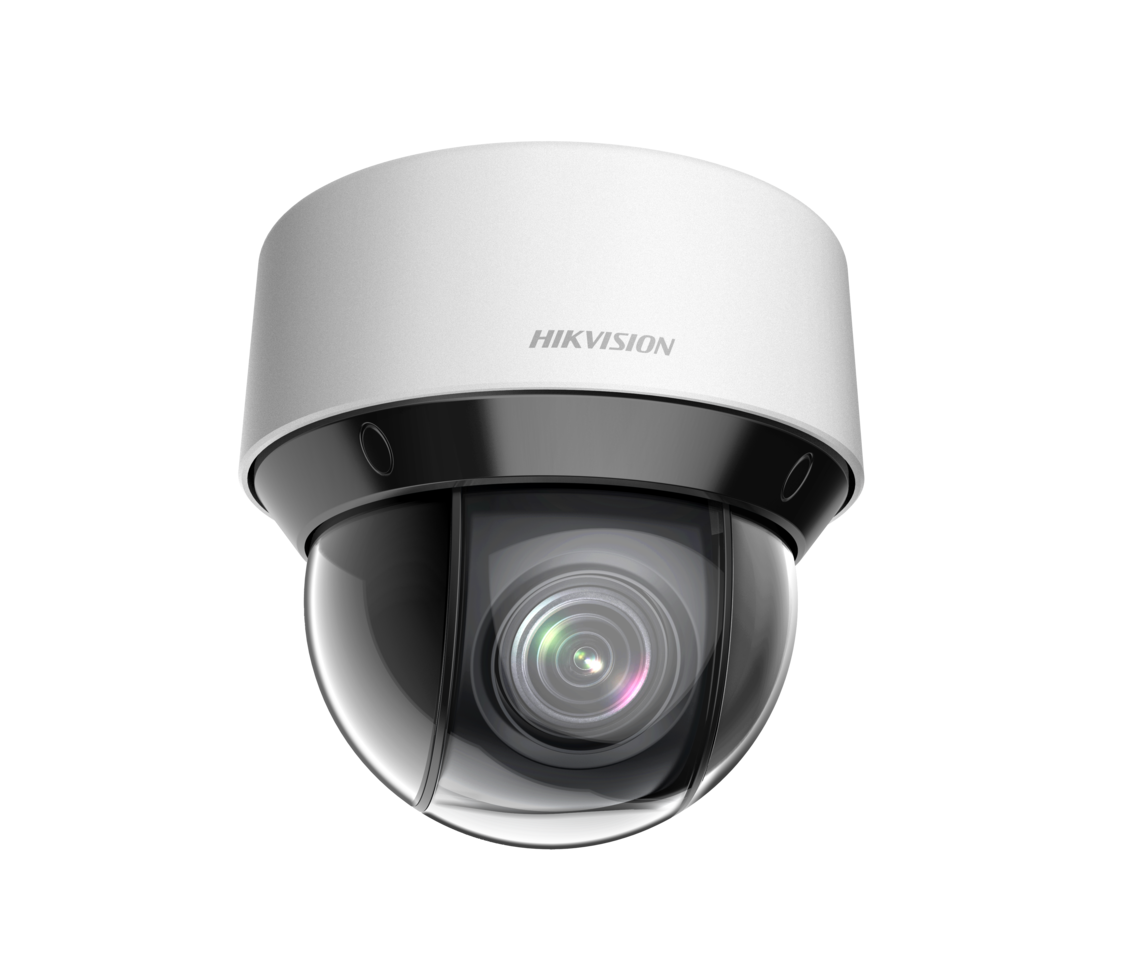

HIKVISION 2MP DOME PTZ 25X ZOOM VARIFOCAL 4.8-120MM

Model: HikVision DS-2DE4A225IW-DE

2MP 25x Optical Zoom Network IR PTZ Camera

Features

• 1/2.8″ progressive scan CMOS
• Up to 1920 × 1080 resolution
• Ultra-low light:
  • Color: 0.005 Lux @(F1.6, AGC ON)
  • B/W: 0.001 Lux @(F1.6, AGC ON)
  • 0 Lux with IR
• 25× optical zoom, 16× digital zoom
• 120 dB WDR, 3D DNR, HLC, BLC
• Up to 50 m IR distance
• 12 VDC & PoE+ (802.3at, class4)
• Support H.265+/H.265 video compression

Specifications

Camera

• Image Sensor: 1/2.8″ HD progressive scan CMOS
• Effective Pixels: 1920(H)x1080(V)
• Signal System: PAL/NTSC
• Minimum Illumination:
  • Color: 0.005 Lux @(F1.6, AGC ON)
  • B/W: 0.001 Lux @(F1.6, AGC ON)
  • 0 Lux with IR
• White Balance: Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• AGC: Auto/Manual
• BLC: ON/OFF
• HLC: Support
• Smart defog: Support
• WDR: 120dB
• Shutter Time: 1/1 to 1/30,000s
• Day& Night: ICR
• Digital Zoom: 16×
• Auto Focus: Auto / Semi-automatic / Manual

Lens

• Focal Length: 4.8 mm to 120 mm, 25× optical
• Zoom Speed: Approx. 3.2 s (optical lens, wide-tele)
• Field of View:
  • Horizontal field of view: 57.6° to 2.5° (wide-tele)
  • Vertical field of view: 34.4° to 1.4° (wide-tele)
  • Diagonal field of view: 64.5° to 2.9° (wide-tele)
• Minimum Working Distance: 10 to 1500mm (wide-tele)
• Aperture Range: F1.6 to F3.5

Pan & Tilt

• Pan Range: 360°endless
• Pan Speed:
  • Configurable, from 0.1°/s to 300°/s
  • Preset Speed: 350°/s
• Tilt Range: -5°~90° (Auto Flip )
• Tilt Speed:
  • Configurable, from 0.1°/s to 160°/s
  • Preset Speed: 200°/s
• Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
• Number of Preset: 300
• Patrol: 8 patrols, up to 32 presets for each patrol
• Pattern: 4 pattern scans, record time over 10 minutes for each scan
• Power-off Memory: Support
• Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• PTZ Position Display: ON/OFF

Infrared

• IR Distance: 50m
• IR irradiation angle: Adjustable by zoom

Alarm

• Alarm Input: 2
• Alarm Output: 2
• Alarm Linkage: Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel

Input & Output

• Audio Input: 1-ch audio input
• Audio Output: 1-ch audio output

Network

• Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
• Max.Image Resolution: 1920×1080
• Main Stream:
  • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),
  • 50fps (1920 × 1080, 1280 × 960, 1280 × 720);
  • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),
  • 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub Stream: 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)
• Video Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264/MJPEG
• Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
• Simultaneous Live View: Up to 20 channels
• Three-Stream: Support
• Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
• Security Measures: User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering

Client GUI

• Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

General

• Power Supply: 12VDC, PoE+
• Power Consumption: Max.: 18W (IR light 5W Max.)
• Working Temperature/Humidity:
  • Outdoor: -30°C to 65°C (-22°F to 149°F)
  • Humidity:≤ 90%
• Protection Level:
  • IP66 standard (outdoor dome)
  • TVS 4,000V lightning protection, surge protection and voltage transient protection
• Dimensions: Φ 169 mm × 161 mm (Φ 6.65″ × 6.34″)
• Weight (approx.): Approx. 2.45kg (5.40lb)
