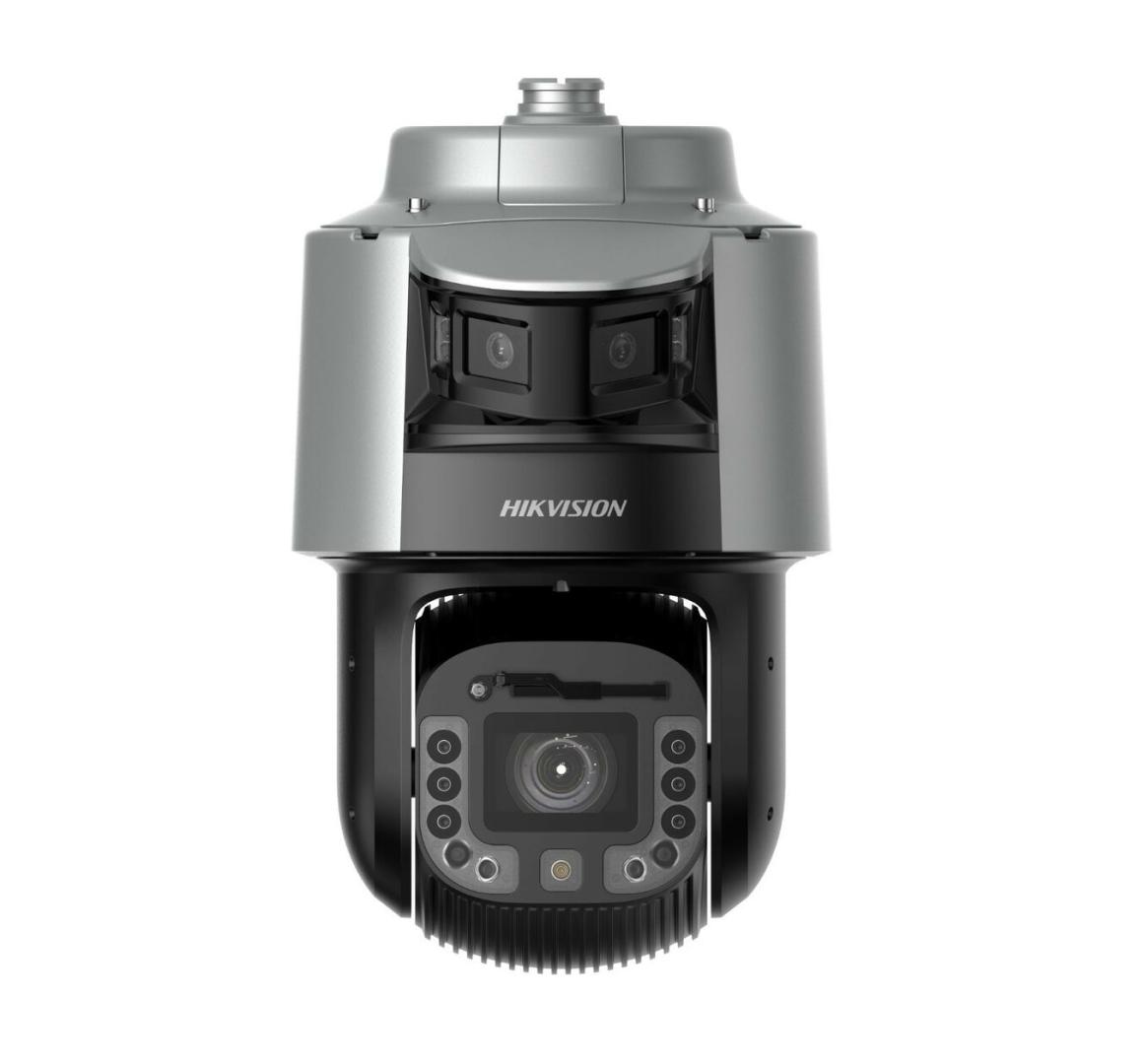

HIKVISION 4MP 2X TandemVu 8-INCH 42X DARKFIGHTER/COLORVU-PTZ

Model: Hikvision DS-2SF8C442MXS-DLW(24F0)(P3)

TandemVu 8-inch Panoramic 4 MP 42X DarkFighter Network Speed Dome

Features

• Captures a large area and great details at the same time
• High quality imaging with 4 MP resolution for both bullet channel and PTZ channel
• 24/7 colorful imaging and excellent low-light performance with DarkFighter technology
• Bullet channel tilt adjustable from 7° to 17°
• Secures an expansive area with 42 × optical zoom and 16 × digital zoom
• Expansive night view with up to 30 m white light distance and 300 m IR distance
• Supports deep learning functions
• Water and dust resistant (IP67) and vandal resistant (IK10)

Specifications

Camera

• Image Sensor: [Bullet channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/1.8″ Progressive Scan CMOS
• Min. Illumination:
  • [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light,
  • [PTZ channel] Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR
• Shutter Speed: 1/1 s to 1/30000 s
• Slow Shutter: Yes
• Day & Night: [Bullet channel] Color, [PTZ channel] IR cut filter
• Zoom: [PTZ channel] 42 × optical, 16 × digital
• Max. Resolution: [Bullet channel] 3840 × 1080, [PTZ channel] 2560 × 1440

Lens

• Focus: Auto,semi-auto,manual
• Focal Length: [Bullet channel] 2.8 mm, [PTZ channel] 5.9 to 247.8 mm
• Zoom Speed: [Bullet channel] No, [PTZ channel] approx. 5.5 s
• FOV: [Bullet channel] horizontal field of view: 190° ± 5°, vertical field of view: 50° ± 5°, diagonal field of view: 198° ± 5°, [PTZ channel] horizontal field of view: 56.6° to 3.1°, vertical field of view: 34.2° to 1.1°, diagonal field of view: 67.1° to 2.3°
• Aperture: [Bullet channel] F1.0, [PTZ channel] F1.2

Illuminator

• Supplement Light Range: [Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m
• Smart Supplement Light: Yes

PTZ

• Movement Range (Pan): [PTZ channel] 0° to 360°
• Movement Range (Tilt): [Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
• Pan Speed: [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
• Tilt Speed: [Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
• Proportional Pan: [Bullet channel] No, [PTZ channel] Yes
• Presets: 300
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
• Power-Off Memory: Yes
• Park Action: Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Preset Freezing: Yes
• Scheduled Task: Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

Video

• Main Stream: [Bullet channel] 50 Hz: 25 fps (3840 × 1080), 60 Hz: 24 fps (3840 × 1080),[PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream: [Bullet channel] 50 Hz: 25 fps (1920 × 536), 60 Hz: 24 fps (1920 × 536),[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream: [Bullet channel] No,[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Video Compression:
  • Main stream: H.265+/H.265/H.264+/H.264,
  • Sub-stream: H.265/H.264/MJPEG,
  • Third stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline profile,Main profile,High profile
• H.265 Type: Main profile
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region Of Interest (ROI): 8 fixed regions for each stream

Audio

• Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,AAC
• Audio Bit Rate: 32 to 192 Kbps (MP2L2),16 to 64 Kbps (AAC)
• Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,48 kHz
• Environment Noise Filtering: Yes

Network

• API: ISUP,ISAPI,SDK,Open Network Video Interface (Profile S, Profile G, Profile T)
• Network Storage: NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
• Protocols: IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
• Simultaneous Live View: Up to 20 channels
• User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
• Security: Password protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark
• Client: iVMS-4200,HikCentral Pro,Hik-Connect
• Web Browser: IE 10+, Chrome 57+, Firefox 52+, Safari 12+


• Day/Night Switch: Day,night,auto,schedule
• Image Enhancement: HLC,3D DNR
• Wide Dynamic Range (WDR): [Bullet channel] No, [PTZ channel] 120 dB
• Defog: Optical defog
• Image Stabilization: EIS
• Regional Exposure: Yes
• Regional Focus: [Bullet channel] No, [PTZ channel] Yes
• Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Image Parameters Switch: Yes
• Privacy Mask: [Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
• SNR: ≥ 52 dB

Supplement Detection

• Satellite Positioning: No
• Gyroscope: Yes
• Compass: No

Interface

• Ethernet Interface: 1 RJ45 100M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Alarm: 7 input(s), 2 output(s)
• Audio:
  • 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
  • 1 output (line out), line level, output impedance: 600 Ω
• RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Réinitialiser: Yes

Event

• Basic Event: [PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
• Smart Event: [PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
• Alarm Linkage: [Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
• Smart Tracking: [PTZ channel] yes
• Smart Linkage: 3D positioning

Deep Learning Function

• Multi-Target-Type Detection: [Bullet channel] no,[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle

General

• General Function: mirror,password protection
• Power: 36 VDC ± 25%, max. 70 W,including max. 6 W for heater and max. 6 W for supplement light of bullet channel, and max. 6 W for heater and max. 15 W for supplement light of PTZ channel
• Operating Condition: -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
• Wiper: Yes
• Demist: Yes
• Material: ADC12
• Dimension: Ø290 mm × 453.2 mm (Ø11.42″ × 17.84″) – Approx. 11.5 kg (25.35 lb.)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

• EMC: FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 62368-1),CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1)
• Environment: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection
