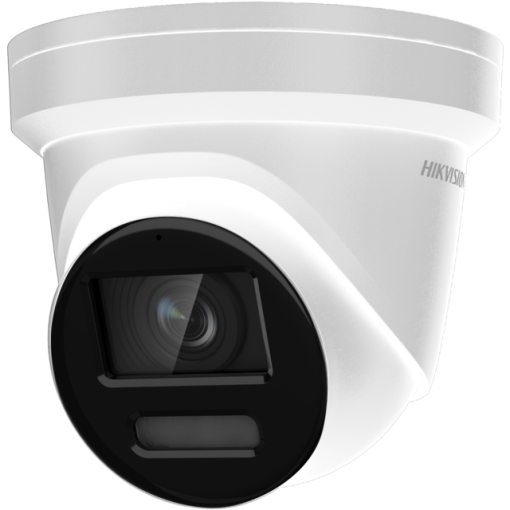

HIKVISION 8MP 4K COLORVU TURRET 2.8MM

Model: Hikvision DS-2CD2387G2-L (2.8mm)

8 MP ColorVu Fixed Turret Network Camera

Features

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology
• Focus on human and vehicle targets classification based on deep learning
• 24/7 colorful imaging
• Water and dust resistant (IP67)

Specifications

Camera

• Image Sensor: 1/1.2″ Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color：0.0005 Lux @ (F1.0, AGC ON)
• Shutter Speed: 1/3 s to 1/100,000 s
• Day & Night: 24/7 Color imaging
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV: 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth Of Field: 2.8 mm: 3.1 m to ∞

DORI

• DORI: 2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes

Video

• Main Stream:
  • 50 Hz:
  • 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz:
  • 24 fps (3840 × 2160)
  • 30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression:
  • Main stream: H.265/H.264/H.264+/H.265+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region Of Interest (ROI): 1 fixed region for main stream and sub-stream

Network

• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,
  NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log,
  basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  • Plug-in required live view: IE 10, IE 11
  • Plug-in free live view : Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+


• Wide Dynamic Range (WDR): 130 dB
• Privacy Mask: 8 programmable polygon privacy masks, mask color or mosaic configurable
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast,
  sharpness, gain, white balance adjustable by client software or web browser

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),
  video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Line crossing detection, intrusion detection, region entrance detection,
  region exiting detection (support alarm triggering by specified target types (human and vehicle)) Scene change detection
• Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email

Deep Learning Function

• Face Capture: Yes

General

• Power:
  • 12 VDC, 0.42 A, max. 5 W
  • PoE: 802.3af, 36 V to 57 V, 0.17 A to 0.11 A, max. 6.0 W
• Material: Cover: metal, main body: metal
• Dimension: Ø138.3 mm × 120.1 mm (Ø5.4″ × 4.7″)
• Package Dimension: 170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)
• Weight: Approx. 870 g (1.9 lb.)
• With Package Weight: Approx. 1160 g (2.6 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language:
  • 33 languages
  • English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French,
    Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish,
    Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter
• Software Reset: Yes

Approval

• EMC:
  • FCC (47 CFR Part 15, Subpart B)
  • CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
  • RCM (AS/NZS CISPR 32: 2015)
  • IC (ICES-003: Issue 7)
  • KC (KN32: 2015, KN35: 2015)
• Safety:
  • UL (UL 62368-1)
  • CB (IEC 62368-1: 2014+A11)
  • CE-LVD (EN 62368-1: 2014/A11: 2017)
• Environment:
  • CE-RoHS (2011/65/EU)
  • WEEE (2012/19/EU)
  • Reach (Regulation (EC) No 1907/2006)
• Protection: IP67: IEC 60529-2013
