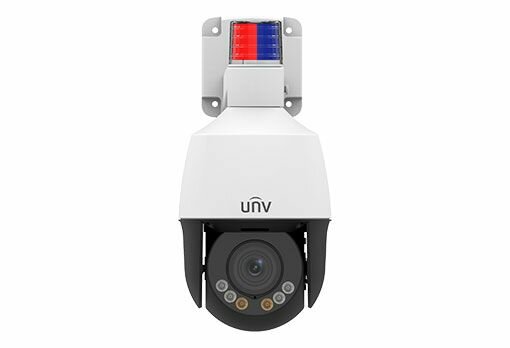

UNIVIEW EASY 5MP MINI PTZ 4x ZOOM MIC/SPEAKER

Model: Uniview IPC675LFW-AX4DUPKC-VG

5MP LightHunter Active Deterrence Mini PTZ Camera

Features

• High quality image with 5MP, 1/2.7″CMOS sensor
• 5MP (2880*1620)@30/25fps; 4MP (2560*1440)@25fps;3MP (2304*1296)@25fps; 2MP (1920*1080)@ 30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Built-in Mic
• Built-in Speaker
• Smart IR, Up to 50 m (164 ft) IR and 10m (33 ft) warm light distance
• Supports 256 G Micro SD card
• IP66 protection
• Support PoE power supply

Specifications

Camera

• Sensor: 1/2.7″ progressive scan, 5.0 megapixel, CMOS
• Lens: 2.8~12mm，AF automatic focusing and motorized zoom lens
• DORI Distance
• Lens: 2.8mm Detect(m): 63.0 Observe(m): 25.2 Recognize(m): 12.6 Identify(m): 6.3
• Lens: 12mm Detect(m): 270.0 Observe(m): 108.0 Recognize(m): 54.0 Identify(m): 27.0
• Angle of View (H): 30.6°~104.1°
• Angle of View (V): 17.4°~54.9°
• Angle of View (O): 34.4°~108.3°
• Shutter: Auto/Manual, shutter time: 1 s ~ 1/100000 s
• Minimum Illumination
  • Colour:0.003 lux (F1.6,AGC ON)
  • 0 lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Digital noise reduction: 2D/3D DNR
• S/N: >52 dB
• IR Range: UP to 50m (164ft)
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual
• Warm Light Range: UP to 10m (33ft)
• WDR: 120dB

Video

• Video Compression: Ultra 265,H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main Profile
• Frame Rate
  • Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 25fps;3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps;
  • Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 8 areas
• ROI: Up to 8 areas
• Motion Detection: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported

Certifications

• Certifications
  • CE: EN 60950-1
  • UL: UL60950-1
  • FCC: FCC Part 15

General

• Power:
  • DC 12V±25%, PoE (IEEE802.3 at)
  • Power consumption: Max 18 W
• Dimensions (Ø x H): Φ133mm*269.4mm (Φ5.2”x 10.6”)
• Net Weight: 0.87 kg (1.92lb)
• Gross Weight: 1.13 kg (2.49lb)
• Material: Metal + Plastic
• Working Environment: -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)
• Strorage Environment: -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)
• Surge Protection: 4KV
• Ingress Protection: IP66
• Reset Button: Supported
