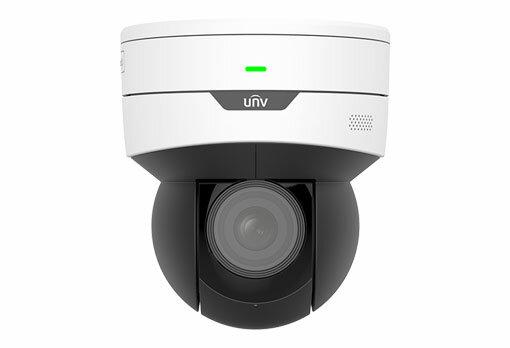

UNIVIEW PRIME 5MP PTZ 5X ZOOM VARIFOCAL 2.7-13.5MM

Model: Uniview IPC6415SR-X5UPW-VG

5MP WDR Starlight IR Network Indoor MiniPTZ Dome Camera – 2.7~13.5mm

Features

• High quality image with 5MP,1/2.7’’ CMOS sensor
• 2880×1620@30fps in the main stream, 16:9 aspect ratio
• Ultra 265, H.265, H.264, MJPEG
• 5X optical zoom allows for closer viewing of subjects
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Wi-Fi connection and easy installation
• Built-in Mic & Speaker, support two-way audio
• Alarm 1 in and 1 out
• Smart IR, up to 30m (98 ft) IR distance

Specifications

Camera:

• Sensor: 1/2.7″, 5.0 megapixel, progressive scan, CMOS
• Min. Illumination: Colour:0.003 lux (F1.2, AGC ON)
• 0 lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• WDR: 120dB
• S/N: ＞56dB

Lens

• Lens type: [email protected], AF automatic focusing and motorized zoom lens
• Iris: Auto aperture
• Angle of View (H): 106.9°~30.6°
• Angle of View (V): 56.0°~17.7°
• Angle of View (O): 131.5°~39.8°

DORI

• DORI Distance:
  • Lens (mm): 2.7, Detect (m):70.9, Observe (m):28.4, Recognize (m):14.2, Identify (m):7.1
  • Lens (mm): 13.5, Detect (m):247.5, Observe (m):99.0, Recognize (m):49.5, Identify (m):24.8

Illuminator

• IR Range: Up to 30m (98 ft) IR range
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Frame Rate: Main Stream: 5MP (2880*1620),Max 30fps;
• Sub Stream: 720P (1280*720), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Support
• ROI: Support
• Video stream: Triple streams
• OSD: Up to 8 OSDs
• Privacy Mask: 24 areas, up to 4 areas per scene


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Flip Vertical/Flip Horizontal/180°
• HLC: Support
• BLC: Support
• Defog: Digital Defog

Events

• Basic Detection: Motion detection, Audio detection, Tampering alarm
• General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

• Audio Compression: G.711U, G.711A
• Audio Bitrate: 64 Kbps
• Two-way Audio: Support
• Suppression: Support
• Sampling Rate: 8 kHz

Storage

• Edge Storage: Micro SD, up to 256 GB
• Network Storage: ANR,NAS(NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client: EZStation
• EZLive
• EZView
• Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Pan & Tilt

• Pan Range: 350°
• Pan Speed: 0.1°/s ~ 60°/s
• Preset speed: 60°/s
• Tilt Range: 0° ~ 90°
• Tilt Speed: 0.1° ~ 50°/s
• Preset speed: 50°/s
• Number of Presets: 1024
• Preset Patrol: 16 patrols, up to 64 presets for each patrol
• Patrol Stay Time: 120s~1800s
• Preset Image Freeze: N/A
• Home Position: Support

Interface

• Audio I/O: N/A
• Alarm I/O: 1/1
• Serial Port: 1 RS485
• Built-in Mic: Support
• Built-in Speaker: Support
• WIFI: Support (IEEE802.11b/g/n)
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video output: N/A

Certification

• EMC:
  • FCC Part 15
  • EN 55032:2015
  • EN 55024:2010
  • EN 61000-3-2:2014
  • EN 61000-3-3-2013
• Safety:
  • IEC 62368-1
  • EN 62368-1
  • UL 60950-1
• Environment: CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

General

• Power: DC12V(±25%), PoE+(IEEE 802.3at)
• Power consumption: Max 15W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions (Ø x H): Φ129 x 143.6mm (Φ5.1’’ x 5.7’’)
• Weight: 0.76kg(1.67lb)
• Working Environment: -10℃~50℃(14°F ~ 122°F)，Humidity: ≤95% RH (non-condensing)
• Storage Environment: -40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)
• Surge protection: 4KV
• Reset Button: Support
• Protection:
  • Ingress Protection: N/A
  • Vandal Resistant: N/A
