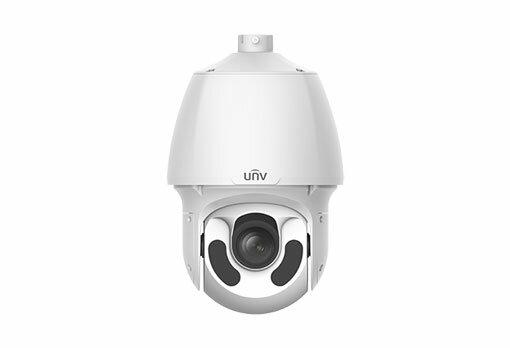

UNIVIEW PRIME 2MP PTZ 33X ZOOM VARIFOCAL 4.5-148.5MM

Model: Uniview IPC6622SR-X33-VF 4.5-148.5mm

2MP 33x Lighthunter Network PTZ Dome Camera

Features

• High quality image with 2MP,1/2.8’’ CMOS sensor
• 1920*1080@60fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Triple streams
• 33X Optical Zoom
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• Smart IR, up to 150m (492 ft) IR distance
• AC 24V±25%, DC 24V±25% or PoE power supply
• Alarm 2 in and 1 out, Audio 1 in and 1 out
• IP66 ingress protection

Specifications

Camera

• Sensor: 1/2.8″, 2.0 megapixel, progressive scan, CMOS
• Min. Illumination: Colour: 0.001 Lux (F1.5, AGC ON)
• 0 Lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• WDR: 120dB
• S/N: >52dB

Lens

• Lens: 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens
• Digital Zoom: 16
• Optical Zoom: 33
• Iris: Auto; F1.5 ~ F4.0
• Angle of View (H): 56.2° ~ 2.6°
• Angle of View (V): 33.5° ~ 1.4°
• Angle of View (O): 69.1° ~ 3.1°

DORI

• DORI Distance:
  • Lens (mm): 4.5: 72.9(239.3ft)Detect (m): 29.2(95.7ft)Observe (m): 14.6(47.9ft)Identify (m) 7.3(23.9ft)
  • Lens (mm): 148.5: 2187.9 (7178.3ft)Detect (m): 875.2(2871.3ft)Observe (m): 437.6(1435.7ft)Identify (m) 218.8(717.8ft)

Illuminator

• IR Range: Up to 150m (492 ft) IR range
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Frame Rate:
  • Main Stream: 2MP(1920*1080),Max 60fps;
  • Sub Stream: 2MP (1920*1080), Max 60fps;
  • Third Stream: D1 (720*576), Max 60fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Support
• ROI: Support
• Video Stream: Triple streams
• OSD: Up to 8 OSDs
• Privacy Mask: 24 areas, up to 4 areas per scene


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction: 2D/3D DNR
• Flip: Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
• HLC: Support
• BLC: Support
• Defog: Digital Defog

Events

• Basic Detection: Motion detection, Audio detection, Tampering Alarm
• Auto Tracking: Support
• General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

• Audio Compression: G.711U,G.711A
• Audio Bitrate: 64 Kbps
• Two-way Audio: Support
• Suppression: Support
• Sampling Rate: 8 kHz

Storage

• Edge Storage: Micro SD, up to 256 GB
• Network Storage: ANR,NAS(NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client:
  • EZStation
  • EZLive
  • EZView
• Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
• Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Pan & Tilt

• Pan Range: 360° (endless)
• Pan Speed: 0.1°/s ~ 200°/s
• Preset speed: 300°/s
• Tilt Range: –15° ~ 90° (auto reverse)
• Tilt Speed:
  • 0.1° ~ 200°/s
  • Preset speed: 240°/s
• Number of Presets: 1024
• Preset Patrol: 16 patrols, up to 64 presets for each patrol
• Route Patrol: 16 patrols, up to 32 actions for each patrol
• Recorded Patrol: 16 patrols, up to 128 actions for each patrol
• Patrol Stay Time: 15s~1800s
• Preset Image Freeze: Support
• Home Position: Support

Interface

• Audio I/O: 1/1
• Alarm I/O: 2/1
• Serial Port: 1 RS485
• Built-in Mic: N/A
• Built-in Speaker: N/A
• WIFI: N/A
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video Output: 1 BNC

Certification

• EMC:
  • FCC Part 15
  • EN 55032:2015
  • EN 55024:2010
  • EN 61000-3-2:2014
  • EN 61000-3-3-2013
• Safety:
  • IEC 62368-1
  • EN 62368-1
  • UL 60950-1
• Environment: CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

General

• Power:
  • AC 24V±25%, DC 24V±25%, PoE (PSE Required)
  • Power consumption: Max 41W
• Power Interface: Wires with cold-pressed terminal
• Dimensions (Ø x H): Ø227 x 384.8mm (Ø8.9” x 15.1”)
• Weight: 5.39kg(11.88lb)
• Working Environment: -40°C ~70°C (-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing)
• Storage Environment: -40°C ~70°C (-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing)
• Surge protection: 6KV
• Reset Button: Support
• Protection:
  • Ingress Protection: IP66
  • Vandal Resistant: N/A
