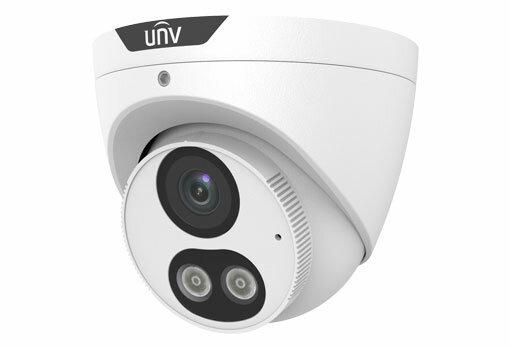

UNIVIEW PRIME COLORHUNTER 5MP TURRET 4.0MM

Model: Uniview IPC3615SE-ADF40KM-WL-I0

5MP HD ColorHunter Fixed Eyeball Network Camera

Features

• High quality image with 5MP, 1/2.7″CMOS sensor
• 5MP (2880*1620)@30/25fps; 4MP (2560*1440)@30/25fps;3MP (2304*1296)@30/25fps; 2MP (1920*1080)@ 30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Colorhunter technology ensures 24-hour full-color images
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 corridor Mode
• Support built-in Mic
• Support 256 G Micro SD card
• IP67 protection
• Support PoE power supply

Specifications

Camera

• Sensor: 1/2.7″, 5.0 megapixel, progressive scan, CMOS
• Lens: [email protected]
• DORI Distance: Lens (mm):4.0, Detect (m):90.0, Observe (m):36.0, Recognize (m):18.0, Identify (m):9.0
• Angle of view(H): 102.0°
• Angle of View (V): 53.4°
• Angle of View (O): 121.0°
• Adjustment angle: Pan: 3° ~ 360°
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination: Colour: 0.001Lux (F1.0, AGC ON)
• S/N: >56dB
• Defog: Digital Defog
• WDR: 120dB
• LEDs Number: 2
• LED Distance: Up to 30m (98ft)

Video

• Video Compression: Ultra265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate:
  • Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps;3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps;
  • Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
  • Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• 9:16 Corridor Mode: Supported
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction: 2D/3D DNR
• Smart Illumination: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: NA
• HLC: Support
• BLC: Support

Audio

• Audio Compression: G.711
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
• Client:
  • EZStation
  • EZView
  • EZLive
• Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
• Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Built-in Mic: Supported
• Network: 1 RJ45 10M/100M Base-TX Ethernet

Certifications

• Certifications:
  • CE: EN 60950-1
  • UL: UL60950-1
  • FCC: FCC Part 15

General

• Power:
  • DC 12V±25%, PoE (IEEE 802.3af)
  • Power consumption: Max 7.5W
• Dimensions (Ø x H): Φ110.5 x 94.1mm (Ø4.4” x 3.7”)
• Net Weight: 0.44kg (0.97lb)
• Material: metal
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge protection: 2KV
• Ingress Protection: IP67
