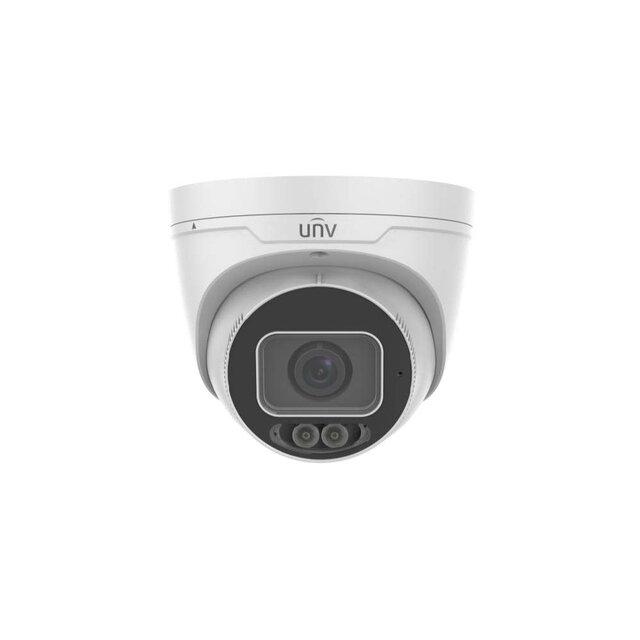

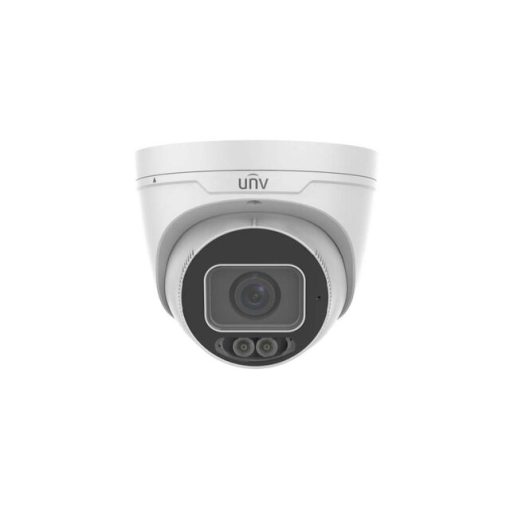

UNIVIEW PRIME III 4MP TURRET COLORHUNTER VARIFOCAL 2.8-12MM

Model: Uniview IPC3634SE-ADZK-WL-I0

4MP HD Intelligent Dual Illuminators ColorHunter VF turret Network Camera

Features

• High quality image with 4MP, 1/1.8″CMOS sensor
• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @ 30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc.,
• accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent face capture
• Intelligent People Flow Counting and Crowd Density Monitoring
• Colorhunter technology ensures 24-hour full-color images
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Supports 256 G micro SD card
• IK10 vandal resistant
• IP67 protection

Specifications

Camera

• Sensor: 1/1.8″, 4.0 megapixel, progressive scan, CMOS
• Minimum Illumination:
  • Colour: 0 .0005Lux (F 1. 2 , AGC On)
  • 0Lux with IR/LED on
• Day/Night IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Adjustment angle:
  • Pan: 0° ~ 360°
  • Tilt: 0° ~ 72°
  • Rotate: 0° ~ 360°
• WDR: 120dB S/N >56dB

Lens

• Lens: 2.8 ~ 12 mm, AF automatic focusing and motorized zoom lens
• Angle of View: (H)1 02.4 °°~ 49.2
• Angle of View: (V) 54.7 °°~ 27.8
• Angle of View: (O) 106.8 55.0

DORI

• DORI Distance
• Lens (mm): 2.8-12.0
• Detect（m): 43.4 – 186.2
• Observe（m): 17.4 – 74.5
• Recognize（m): 8.7 – 37.2
• Identify（m): 4.3 – 18.6

Illuminator

• LED Distance: Up to 30m (98ft)
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual

Video

• Video Compression: Ultra265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate:
  • Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
  • Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps
  • Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate 128 Kbps~16 Mbps
• U-code Support
• ROI Up to 8 areas
• Video Stream: Triple streams
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas

Images

• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
• Digital noise reduction: 2D/3D DNR
• Smart Illumination: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: NA
• HLC: Support
• BLC: Support
• Defog: Digital Defog

Intelligent

• Smart intrusion prevention: Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection
• Face capture: Support
• Statistical Analysis: People counting, support tripwire people counting and area people counting

Events

• Basic Detection: Motion detection, Tampering alarm, Audio Detection
• General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

• Audio Compression: G.711
• Audio Bitrate;: 64 Kbps
• Two-way audio: Supported
• Suppression: Supported
• Sampling Rate: 8KHZ Storage
• Edge Storage: Micro SD, up to 256 GB
• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client: EZStation EZView EZLive
• Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

• Audio I/O:
  • Input: impedance 35kΩ; amplitude 2V [p-p]
  • Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O: 1/1
• RS485: N/A
• Built-in Mic: Support
• Built-in Speaker: N/A
• WIFI: N/A
• Network: 1 RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A

Certifications

• EMC:
  • FCC CFR 47 Part 15
  • EN 55032:2015
  • EN 55024:2010
  • EN 61000-3-2:2014
  • EN 61000-3-3-2013
• Safety:
  • IEC 62368-1
  • EN 62368-1
  • UL 62368-1
• Environment: CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

General

• Power:
  • DC 12V±25%, PoE (IEEE 802.3af)
  • Power consumption: Max 10.0W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions (Ø x H): Φ129 x 110mm (Φ5.1” x 4.3”)
• Weight: 0.66kg (1.45lb)
• Material: Metal
• Operating Conditions: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 6KV
• Reset Button: Supported
• Protection:
  • Ingression protection: IP67
  • Vandal resistant: IK10
