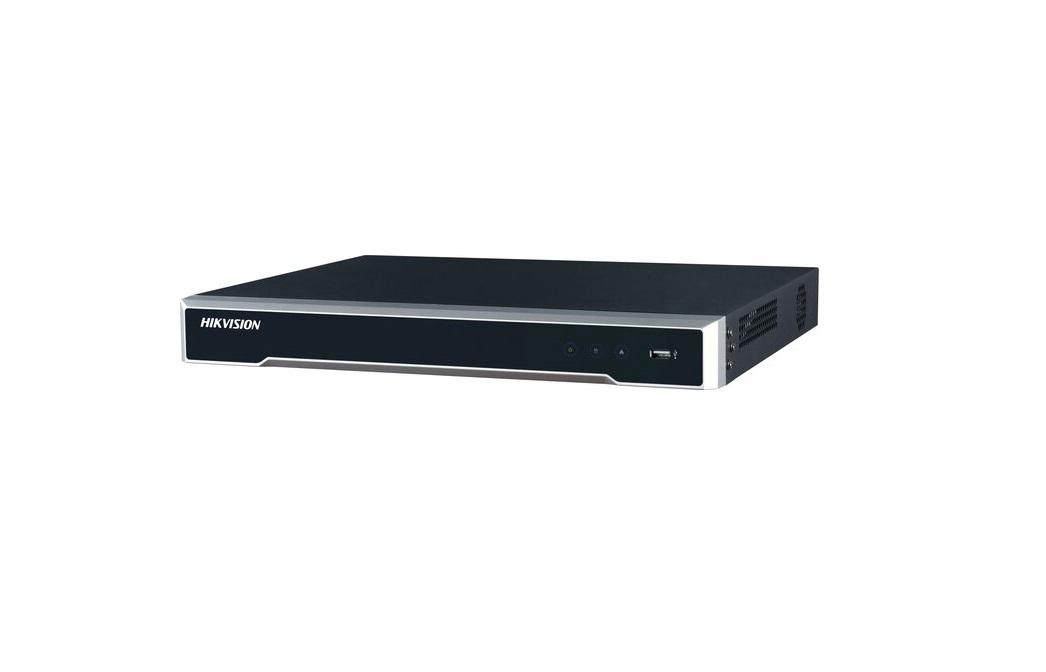

HIKVISION 16 CHANNELS NVR 8MP 4K – 2X SATA – ALARM 4IN/1OUT

Model: Hikvision DS-7616NI-K2

16 Channels 1U 4K NVR PoE

Features

• Up to 16 channel IP cameras can be connected
• Supports decoding H.265+/H.265/H.264+/H.264 video formats
• Up to 4K high-definition live view, storage and playback
• Up to 8-ch @ 1080p decoding capacity
• Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
• 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
• 2 HDDs for continuous video recording

Specifications

Video And Audio

• IP Video Input: 16-ch
• Incoming Bandwidth: 160 Mbps
• HDMI Output: 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Outgoing Bandwidth: 160 Mbps
• VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1kΩ)

Decoding

• Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4
• Decoding Capability: 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
• Synchronous Playback: 16-ch
• Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Network

• Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Network Protocol: TCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP,SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Auxiliary Interface:

• SATA: 2 SATA interfaces
• Capacity: Up to 6 TB capacity for each HDD
• USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out: 4/1

General

• Power Supply: 12 VDC
• Consumption: ≤15 W
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10 to 90 %
• Dimension (W × D × H): 385 × 315× 52 mm (15.2″ × 12.4″ × 2.0″) – ≤ 1 kg (2.2 lb)
