HIKVISION 8 CHANNELS NVR 12MP – 2x SATA – ALARM 4 IN/OUT

Successor model is 7608NXII2S

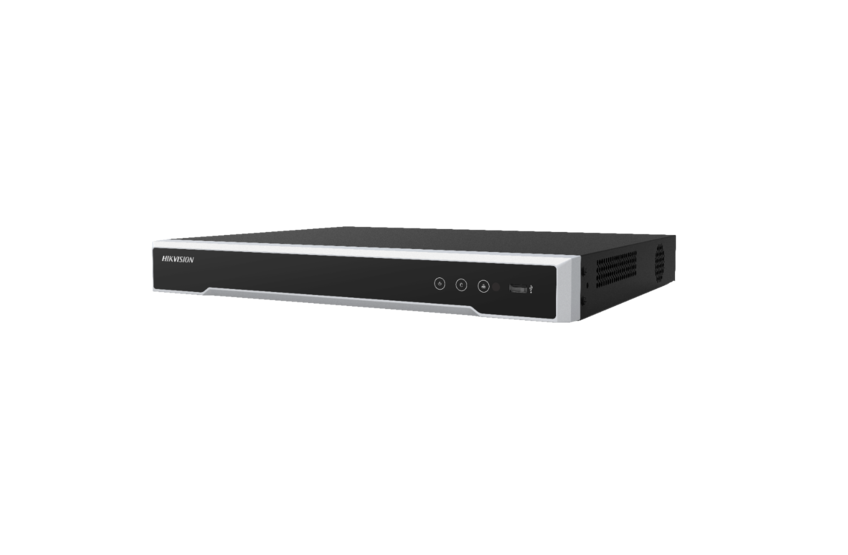

Model: HikVision DS-7608NI-I2

4 Channels Embedded 4K NVR – Alarm 4 IN/OUT

Features

• Up to 8 channel IP cameras can be connected
• Up to 1-ch@32 MP/2-ch@12 MP/16-ch@1080p decoding capacity
• 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
• 2 HDDs for continuous video recording
• Supports various special function cameras, including thermal camera /fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
• Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
• Supports dual-stream recording to save time and bandwidth

Specifications

Video And Audio

• IP Video Input:
  • 8-ch
  • Up to 12 MP resolution
    *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 256 Mbps
• HDMI Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output Mode: HDMI/VGA independent output
• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4
• Recording Resolution:
  • 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
    *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
• Synchronous Playback: 8-ch
• Decoding Capability: 1-ch@32 MP (30 fps)/2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
• Dual-Stream Recording: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726

Network

• Remote Connection: 64
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA: 2 SATA interfaces
• Capacity: Up to 10 TB capacity for each HDD
• Alarm In/Out: 4/1
• USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

General

• Power Supply: 12 VDC, 3.33 A
• Consumption: ≤15 W (without HDD)
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 385 × 315× 52 mm (15.2″ × 12.4″ × 2.0″) – ≤ 1 kg (2.2 lb)

Certification

• FCC: Part 15 Subpart B, ANSI C63.4-2014
• CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
