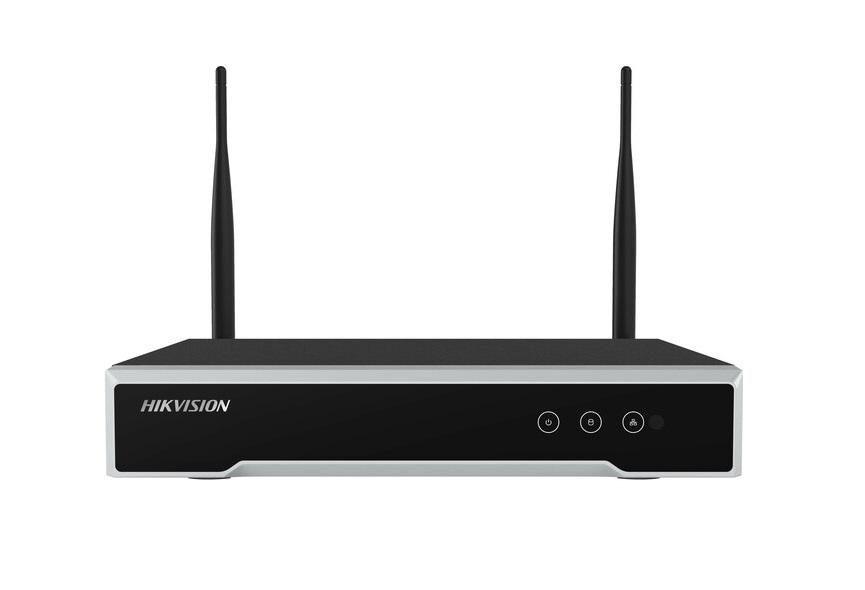

HIKVISION 8 CHANNELS NVR 4MP + WIFI & 1X SATA

Model: Hikvision DS-7108NI-K1/W/M HDD (not incl.)

Features

Video Input and Transmission

• Up to 8 IP cameras (max. incoming bandwidth: 50 Mbps)
• Live view of the connected camera at up to 4 MP resolution

Compression and Recording

• H.264, H.265, H.264+, and H.265+ compression.
• Full channel recording at up to 4 MP resolution

Video Output

• HDMI/VGA output with up to 1920 × 1080 resolution

Storage and Playback

• 1 SATA interface for HDD with up to 6 TB capacity
• Up to 8-ch synchronous playback
• Smart search for efficient playback

Smart Function

• Supports line crossing and intrusion VCA (Video Content Analytics) events for IP cameras

Network & Ethernet Access

• Hik-Connect for easy network management
• One 100M Ethernet network interface

Wi-Fi Features

• Provides Wi-Fi function.
• Up to 16 terminals, including mobile phone and laptop, can access NVR via Wi-Fi
• Dual external antenna design offers more powerful and stable signal.

Specifications

Video/Audio Input

• Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
• IP video input: 8-ch
• Audio Input: 1-ch, RCA (2.0Vp-p, 1kΩ)

Network

• Incoming bandwidth: 50Mbps
• Outgoing bandwidth: 40Mbps

Video/Audio Output

• HDMI/VGA output: 1-ch, resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
• Audio Output: 1-ch, RCA (Linear, 1kΩ)

Decoding

• Capability: 1-ch @ 4 MP / 2-ch @ 1080p

Hard Disk

• Interface Type: 1 SATA interface
• SATA: 1 SATA interface for 1 HDD
• Capacity: Up to 6TB capacity for each HDD

External Interface

• Network Interface: 1 RJ-45 10 / 100 Mbps selfadaptive Ethernet interface
• USB Interface: 2, USB2.0

General

• Power Supply: 12 VDC
• Power Consumption: ≤ 12 W
• Working Temperature: -10° C ~ +55° C (+14° F~ + 131° F)
• Working Humidity: 10 % ~ 90 %
• Dimensions: 260 × 246 × 48 mm (10.2″ × 9.7″ × 1.9″)
• Weight(without HDD): ≤ 1 kg (2.2 lb)
