UNIVIEW 8 CHANNELS NVR – 2x SATA – 8x POE

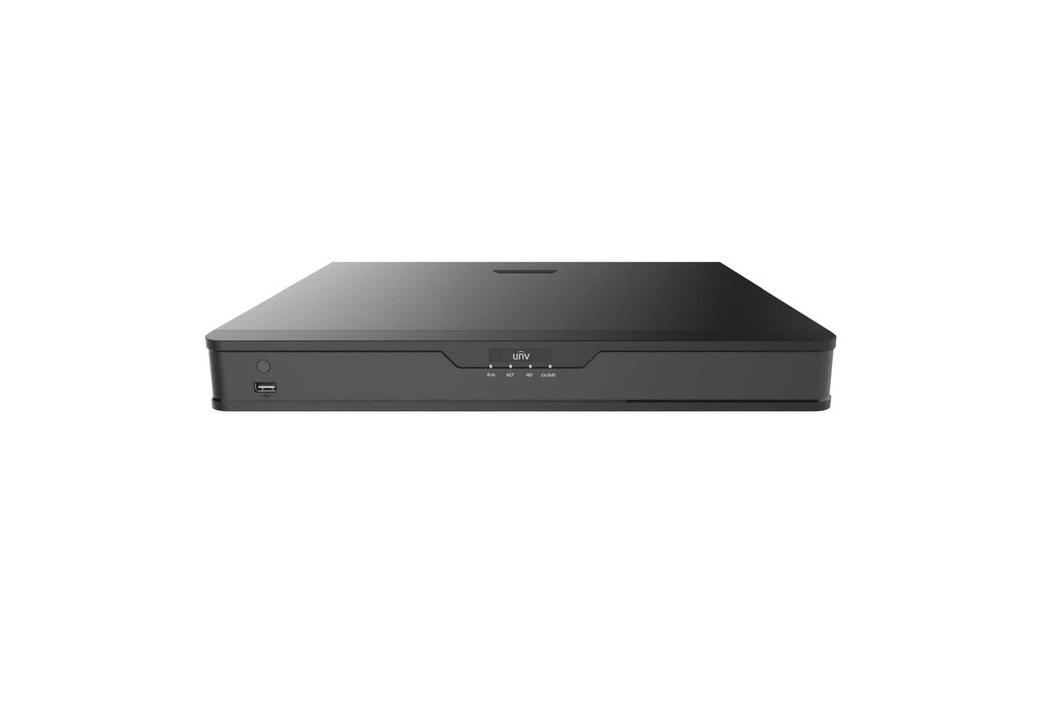

Model: Uniview NVR302-08E2-P8

Network Video Recorder

Features

• Support Ultra H.265/H.265/H.264 video formats
• 8 channel input
• Plug & Play with 8 independent PoE network interfaces
• Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840×2160) resolution
• HDMI and VGA independent outputs provided
• Up to 12 Megapixels resolution recording
• 2 SATA HDDs, Up to 10TB for each HDD (not included)
• Various fisheye dewarping modes for live view and playback for both web interface and GUI
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade

Specifications

Video/Audio Input

• IP Video Input: 8-ch
• Two-way Audio Input: 1-ch, RCA

Network

• Incoming Bandwidth: 320Mbps
• Outgoing Bandwidth: 160Mbps
• Remote Users: 128
• Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS
• Browser: IE(IE10/11) for Windows
• Firefox (version 52.0 and above) for Windows
• Chrome(version 45 and above) for Windows
• Edge(version 79 and above) for Windows

Video/Audio Output

• HDMI/VGA Output:
  • VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz,1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
  • HDMI: 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
• Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Audio Output: 1-ch, RCA
• Audio Compression: G.711A, G.711U
• Synchronous Playback: 8-ch
• Live View Display: 1/4/6/8/9
• Corridor Mode Screen: 3/4/5/7/9

Snapshot

• FTP/Schedule/Event Snapshot: 16-ch snapshot, up to 1080P resolution

Decoding

• Decoding Format: Ultra 265, H.265, H.264
• Live View/Playback: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Capability: 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 8 x 1080P@30

Hard Disk

• SATA: 2 SATA interfaces
• Capacity: up to 10TB for each HDD
• eSATA: NA
• Disk Group: Support

Smart

• VCA Detection by Camera: Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking
• VCA Search: Behavior Search, Vehicle Search
• People Counting: People Flow Counting, Crowd Density Monitoring
• Smart Intrusion Prevention (SIP), Vehicle Detection by Camera: Total 8-ch

General Alarm

• General Alarm: Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection
• Alert Alarm: IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

• Network Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
• USB Interface: Front panel: 1 x USB2.0,Rear panel: 1 x USB3.0
• RS232: NA
• RS485: 1
• Alarm In: 8-ch
• Alarm Out: 2-ch

PoE

• Interface: 8 RJ-45 10M/100M self-adaptive Ethernet Interface: 16 RJ-45 10M/100M self-adaptive Ethernet Interface
• Max Power: Max 30W for single port
• Max 130W in total: Max 30W for single port
• Max 240W in total
• Supported Standard: IEEE 802.3af/at

General

• Power Supply: 100~240V AC
• Power Consumption: ≤ 15W (without HDD)
• Working Environment: -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
• Dimensions (W×D×H): 380mm × 315mm × 53mm (15.0″ × 12.4″× 2.1″)
• Weight (without HDD): ≤2.6Kg (5.73lb)

Certification

• Certification: CE, FCC, UL, RoHS, WEEE
• CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
• FCC: Part15 Subpart B, ANSI C63.4
