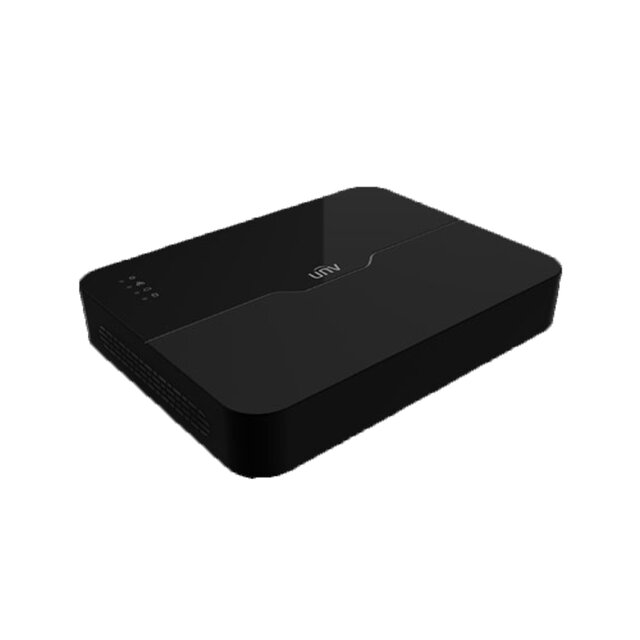

UNIVIEW EASY 4 CHANNELS NVR – 1X SATA – 4x POE – BLACK

Model: Uniview NVR301-04LX-P4-BLACK

Features

• Support Ultra 265/H.265/H.264 video formats
• 4-channel input
• Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Support 1-ch HDMI ,1-ch VGA,HDMI at up to 4K(3840×2160) resolution
• HDMI and VGA simultaneous output
• Up to 8MP resolution recording
• 1 SATA HDD up to 6 TB
• Support cloud upgrade

Specifications

Video/Audio Input

• IP Video Input: 8-ch
• Two-way Audio Input: 1-ch, RCA

Network

• Incoming Bandwidth: 80Mbps
• Outgoing Bandwidth: 64Mbps
• Remote Users: 128
• Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
• Browser:
  • IE(IE10/11) for Windows
  • Firefox (version 52.0 and above) for Windows
  • Chrome(version 45 and above) for Windows
  • Edge(version 79 and above) for Windows

Video/Audio Output

• HDMI/VGA Output: HDMI: 3840×2160/30Hz ,1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
• VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
• Recording Resolution: 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Audio Output: 1-ch, RCA
• Audio Compression: G.711A, G.711U
• Synchronous Playback: 4-ch
• Liveview display: 1/4
• Corridor Mode Screen: 3/4

Snapshot

• FTP/Schedule/Event Snapshot: 4-ch snapshot, up to D1 resolution

Decoding

• Decoding format: Ultra 265/H.265/H.264
• Liveview/Playback: 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Capability: 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30

Hard Disk

• SATA: 1 SATA interface
• Capacity: up to 6TB for each disk

Smart

• VCA Detection by Camera: Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking
• VCA Search: Behavior Search
• People counting: People Flow Counting, Crowd Density Monitoring
• Smart Intrusion Prevention (SIP) by Camera: 4-ch

General Alarm

• General Alarm: Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
• Alert Alarm: IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet Interface
• USB Interface: Rear panel: 1 x USB2.0,1 x USB3.0
• RS232: NA
• RS485: NA
• Alarm In: NA
• Alarm Out: NA

PoE

• Interface: 8 RJ45 10M/100M self-adaptive Ethernet Interface
• Max Power: Max 30W for single port
• Max 75W in total
• Supported Standard: IEEE 802.3at, IEEE 802.3af

General

• Power Supply: 52V DC
• Power Consumption: ≤9 W (without HDD)
• Working Environment: -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
• Dimensions (W×D×H): 270mm × 205mm × 47mm (10.6″×8.1″×1.9″)
• Weight (without HDD): ≤0.8kg (1.76lb)

Certification

• Certification: CE, FCC, UL, RoHS, WEEE
• CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
• FCC: Part15 Subpart B, ANSI C63.4
