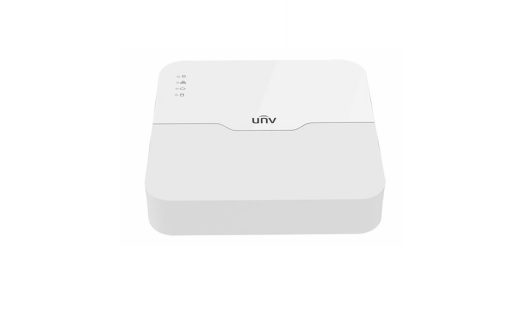

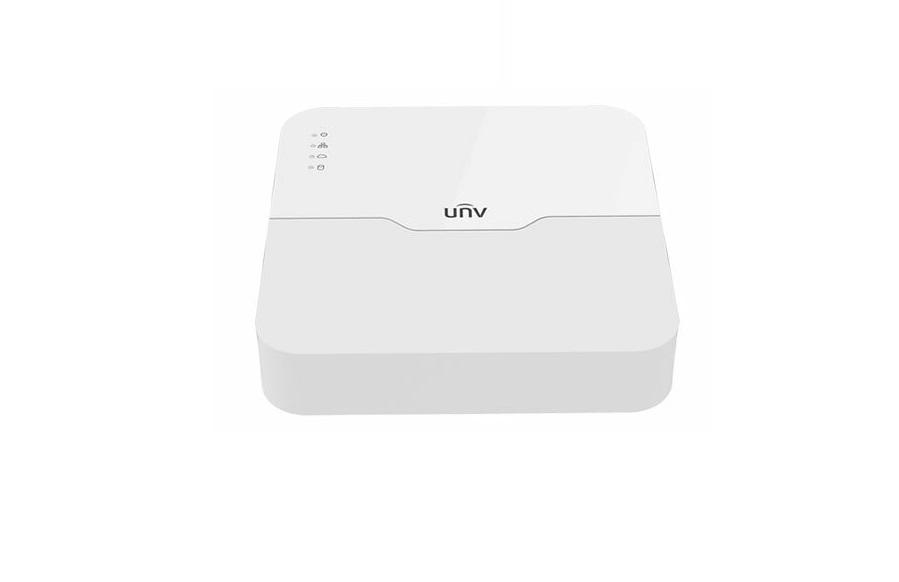

UNIVIEW EASY 8 CHANNELS NVR – 1x SATA – 8x POE

Model: Uniview NVR301-08LX-P8

8 Channel 1 HDD NVR

Features

• Support Ultra 265/H.265/H.264 video formats
• 8-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Support 1-ch HDMI ,1-ch VGA,HDMI at up to 4K(3840×2160) resolution
• HDMI and VGA simultaneous output
• Up to 8MP resolution recording
• 1 SATA HDD up to 10 TB
• Support cloud upgrade

Specifications

Video/Audio Input

• IP Video Input: 8-ch
• Two-way Audio Input: 1-ch, RCA

Network

• Incoming Bandwidth: 64Mbps
• Outgoing Bandwidth: 64Mbps
• Remote Users: 128
• Protocols: P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

• HDMI/VGA Output:
  • HDMI: 3840×2160/30Hz ,1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
  • VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
• Recording Resolution: 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Synchronous Playback: 8-ch
• Corridor Mode Screen: 3/4/5/7/9

Decoding

• Decoding format: Ultra 265/H.265/H.264
• Liveview/Playback: 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Capability: 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30, 16 x 720p@30

Hard Disk

• SATA: 1 SATA interface
• Capacity: up to 10TB for each disk

External Interface

• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet Interface
• USB Interface: Rear panel: 1 x USB2.0,1 x USB3.0

PoE

• Interface: 8 independent 100 Mbps PoE network interfaces
• Max Power: Max 30W for single port
  • Max 108W in total (13.5W for each)
• Supported Standard: IEEE 802.3at, IEEE 802.3af

General

• Power Supply: 52V DC
• Power Consumption: ≤8 W (without HDD)
• Working Environment: -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
• Dimensions (W×D×H): 270mm × 205mm × 47mm (10.6″×8.1″×1.9″) Weight (without HDD): 0.7 kg (1.54 lb)
