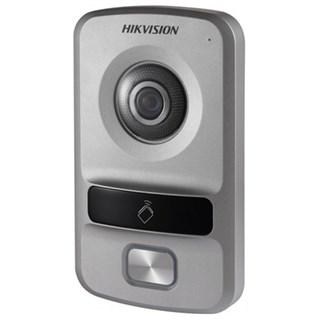

HIKVISION 1.3MP DOORSTATION PLASTIC 1CHANNEL OUTDOOR VISIBLE

• Video intercom function


• HD video surveillance (Max. resolution: 1280×720@25fps, WDR, 120° wide angle)


• Self-adaptive light supplement


• Access control function


• Activating  card  via  local  station  function  (This  function  will  be  invalid  if  the  card  has  been activated via iVMS-4200)


• Auto-uploading captured pictures to FTP or iVMS-4200 Client while unlocking the door


• Door magnetic alarm and tamper -proof alarm function


• Noise suppression and echo cancellation


• Remote upgrade, batch setting functions

System Parameters

• Processor High-Performance Embedded SOC Processor


• Operation System: Embedded Linux OS

Video Parameters

• Camera: CMOS Low Illumination 1.3 MP HD Colorful Camera


• Video Compression Standards: H.264


• Resolution: 1280×720


• Video Frame: 25fps


Audio Parameters

• Audio Input Built-in Omnidirectional Microphone


• Audio OutputBuilt-in Loudspeaker


• Audio Compression Standard: G.711 U


• Audio Compression Rate: 64 Kbps


• Audio Quality: Noise Suppression and Echo Cancellation


Access Control Parameters

• Internal Card Reader: Built-in Card Reader


• DoorButton: Door Button for openingthe Door


• NO/NC: Supporting NO/NC Status Settings


• Door Magnetic Detection


• Detecting: Door Magnetic Status

Light Supplement

• Light Supplement Mode: Visible Light Supplement
