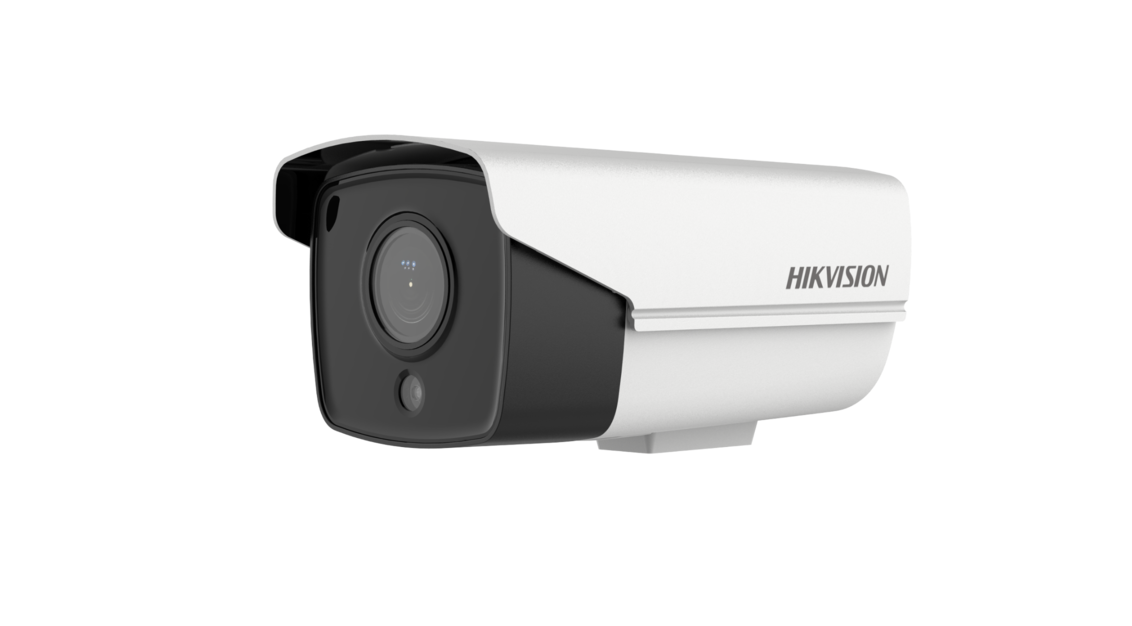

HIKVISION 2MP BULLET 8.0MM – 4G

Model: Hikvision DS-2CD3T23G1-I/4G(8.0mm)

2MP Powered by darkfighter Fixed Bullet 4G Network Camera

Features

It can be used in the areas that are not suitable for laying wired network and electric supply lines, or used for the scenes that feature tough environment and have high demanding for device stability. It can be used for monitoring the farms, electric power cables, water and river system, oil pipelines and key forest areas. It also can be used in the temporary monitoring scenes, such as the large-scale competitions, the sudden public activity, the temporary traffic control and the city construction.

• High quality imaging with 2 MP(1920 × 1080 @30 fps) resolution
• Clear imaging against strong back light due to 120 dB true WDR technology
• LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
• Camera: Water and dust resistant (IP67)

Specifications

Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Min. Illumination:
  • Color: 0.004 Lux @ (F1.4, AGC ON)，
  • B/W: 0.002 Lux @ (F1.4, AGC ON), 0 Lux with IR on
• Shutter Speed: 1 s to 1/100,000 s
• Slow Shutter: Yes
• P/N: P/N
• Wide Dynamic Range: 120 dB
• Day ＆ Night: IR cut filter

Lens

• Lens Type Fixed Focus Lens
• Lens Type ＆ FOV: 8 mm @F1.6: Horizontal FOV: 41°, vertical FOV: 22°, diagonal FOV: 47°
• Lens Mount M12

DORI

• DORI: 8 mm: D 110 m / O 44 m / R 22 m / I 11 m

Illuminator

• IR Range Up to 30m
• Wavelength 850nm
• Smart Supplement Light Yes

Video

• Max. Resolution: 1920 × 1080
• Main Stream:
  • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream
  • 50Hz: 25fps (704 × 576, 640 × 480)
  • 60Hz: 30fps (704 × 480, 640 × 480)
• Third Stream
  • 50Hz: 1fps (1280 × 720, 640 × 480)
  • 60Hz: 1fps (1280 × 720, 640 × 480)
• Video Compression
  • Main stream: H.265+/H.265/H.264+/ H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main Stream supports
• H.265+: Main Stream supports
• Bit Rate Control: CBR/VBR
• Stream Type: Main stream/Sub-stream/third stream
• Scalable Video Coding (SVC): H.265 and H.264 support
• Region of Interest (ROI): 4 fixed regions for each stream

Network

• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network – Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, TLS 1.2
• Network Storage: microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser
  • Plug-in required live view: IE8+
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
  • Local service: Chrome 41.0+, Firefox 30.0+

Mobile Communication

• 4G Frequency:
  • LTE-TDD: Band38/40/41；
  • LTE-FDD: Band1/3/5/7/8/20/28；
  • WCDMA: Band1/5/8
  • GSM: Band3/5/8
• 4G Standard: LTE-TDD/LTE-FDD/WCDMA/GSM


• Smart IR: The IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.
• Day/Night: Switch Day, Night, Auto, Schedule
• Target Cropping: Yes
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Image Enhancement: BLC, HLC, 3D DNR, Defog
• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• SNR: ≥52dB
• Privacy Mask: 4 regions of privacy mask

Interface

• RS-485: 1 RS-485(half duplex)
• On-board Storage: Built-in micro SD slot, up to 256GB
• Hardware Reset: Yes
• Communication Interface: RJ45 10M/100M self-adaptive Ethernet port
• 4G: micro SIM card

Event

• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event:
  • Line Crossing Detection, up to 4 regions configurable
  • Intrusion detection, up to 4 regions configurable
  • Region entrance detection, up to 4 regions configurable
  • Region exiting detection, up to 4 regions configurable
  • Unattended baggage detection, up to 4 regions configurable
  • Object removal detection, up to 4 regions configurable,
  • Scene change detection
    *The smart events are only supported in full power mode.

General

• Power: 12 VDC ± 25%, 0.33 A, max. 4 W
• Linkage Method:
  • Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
  • Trigger recording：memory card, network storage, pre-record and post-record
  • Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email
  • Trigger notification: HTTP, ISAPI, Email
• Online Upgrade: Yes
• Dual Backup: Yes
• Firmware Version: V5.5.111
• Web Client Language: 33 languages
  • English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
  • French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
  • Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
  • Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function:
  • Anti- flicker, 3 streams heartbeat, mirror, privacy masks,flash log, password reset via
  • e-mail, pixel counter
• Software Reset: Yes
• Storage Conditions: -30 °C to 60 °C. Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -15 °C to 55 °C. Humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 20% ;
• Camera Material: Front cover: metal; camera body: plastic
• Screw Material: SUS304
• Camera Dimension: 760 × 732.6 × 586.9 mm (29.9″ × 28.8″ × 23.1″) (Max. size of the camera after it is completely assembled)
• Package Dimension: 826 × 469 × 444 mm (32.5″ × 18.5″ × 17.5″)
• Camera Weight Approx. 1070g (2.36 lb.)
• With Package Weight Approx. 1365g (3.01 lb.)

Approval

• Class: Class B
• EMC:CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015);
• RF:CE-RED (EN 301489-1 V2.2.3; EN 301489-52 V1.1.0; EN 62311:2008); ICASA (EN 301 489-1 V2.2.3; EN 301 489-52 V1.1.0;EN 62311:2008)
• Safety:
  • CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013;IEC 62368-1:2014);
  • CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013;EN 62368-1:2014+A11:2017);
• Environment
  • CE-RoHS (2011/65/EU);
  • WEEE (2012/19/EU);
  • Reach (Regulation (EC) No 1907/2006)
• Protection Camera: IP67(IEC 60529-2013)
