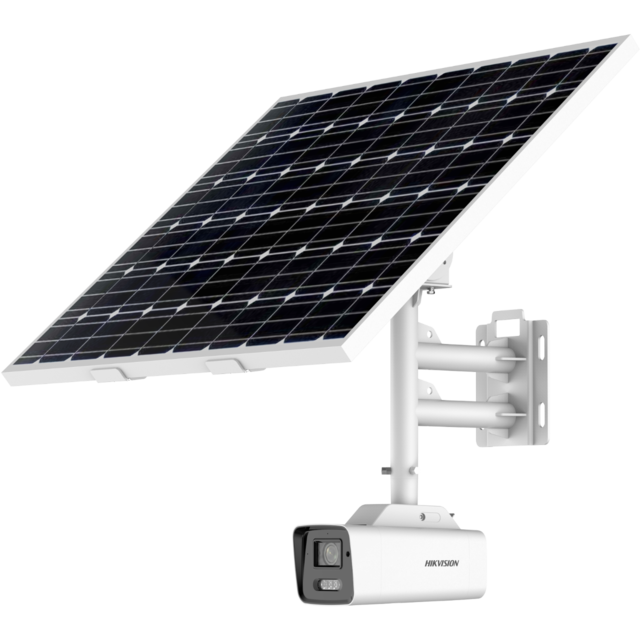

HIKVISION EXIR 2.8MM BULLET SOLAR POWER 4G CAMERA KIT

Model: Hikvision DS-2XS6A87G1-L/C32S80 (No battery)

4K ColorVu Fixed Bullet Solar Power 4G Network Camera Kit

Features

It can be used in the areas that are not suitable for laying wired network and electric supply lines, or used for the scenes that feature tough environment and have high demanding for device stability. It can be used for monitoring the farms, electric power cables, water and river system, oil pipelines and key forest areas. It also can be used in the temporary monitoring scenes, such as the large-scale competitions, the sudden public activity, the temporary traffic control and the city construction. Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high performance sensors. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light. Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

• High quality imaging with 8 MP@ 15fps resolution
• 24/7 Colorful imaging
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• 80 W photovoltaic panel, 30 Ah chargeable lithium battery (The battery should be ordered separately.)
• Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
• LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
• Camera: Water and dust resistant (IP67)
• Built-in 64 GB eMMC storage

Specifications

Camera

• Image Sensor: 1/1.2″ Progressive Scan CMOS
• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
• Max. Resolution: 3840 × 2160
• Shutter Time: 1 s to 1/100,000 s

Lens

• Focal Length & FOV
• 2.8 mm, horizontal FOV: 101.6°, vertical FOV: 52.4°, diagonal FOV: 124°
• 4 mm, horizontal FOV: 88.2°, vertical FOV: 48.7°, diagonal FOV: 101.8°
• Lens Type Fixed focal lens, 2.8 and 4 mm optional
• Iris Type Fixed
• Aperture F1.0
• Lens Mount M20

DORI

• 2.8 mm: D: 44 m, O: 17.5 m, R: 9 m, I: 4.5 m
• 4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m

Illuminator

• Supplement Light: Type White Light
• Supplement Light: Range Up to 30 m
• Smart Supplement Light: Yes

Video

• Main Stream:
  • 50 Hz: 12.5 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 15 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 12.5 fps (640 × 480, 640 × 360)
  • 60 Hz: 15 fps (640 × 480, 640 × 360)
• Video Compression:
  • Main stream: H.265
  • Sub-stream: H.265/MJPEG
    *Full power mode: main stream supports H.265+
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.265 encoding
• Region of Interest (ROI): 4 fixed regions for main stream

Network

• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: Hik-Connect (low power mode also supports), Hik-central Professional
• Web Browser: Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Mobile Communication

• SIM Card Type: MicroSIM
• Frequency:
  • DS-2XS6A87G1-L/C32S80:
    • LTE-TDD: Band38/40/41
    • LTE-FDD: Band1/3/5/7/8/20/28
    • WCDMA: Band1/5/8
    • GSM: Band3/5/8
  • DS-2XS6A87G1-L/C32S80 (US):
    • LTE-FDD: Band2/4/5/12/13/17/66/71
    • WCDMA: Band2/4/5
  • DS-2XS6A87G1-L/C32S80 (LA):
    • LTE-TDD: Band38/40
    • LTE-FDD: Band1/2/3/4/5/7/8/12/17/20/28/66
    • WCDMA: Band1/2/3/4/5/8
    • GSM: Band2/3/5/8
  • DS-2XS6A87G1-L/C32S80 (JP):
    • LTE-TDD: Band41
    • LTE-FDD: Band1/3/8/11/18/19/21/26/28
    • WCDMA: Band1/8
• Standard
  • DS-2XS6A87G1-L/C32S80: LTE-TDD/LTE-FDD/WCDMA/GSM
  • DS-2XS6A87G1-L/C32S80 (US): LTE-FDD/WCDMA
  • DS-2XS6A87G1-L/C32S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM
  • DS-2XS6A87G1-L/C32S80 (JP): LTE-TDD/LTE-FDD/WCDMA


• Wide Dynamic Range (WDR): 120 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Parameters Switch: Yes
• Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• SNR: ≥ 52 dB
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• RS-485: 1 RS-485 (half duplex)
• On-Board Storage:
  • Built-in memory card slot, support microSD card, up to 256 GB;
  • Built-in 64 GB eMMC storage
• Reset Key: Yes
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event : Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event:
  • Line crossing detection, up to 4 regions configurable
  • Intrusion detection, up to 4 regions configurable
  • Region entrance detection, up to 4 regions configurable
  • Region exiting detection, up to 4 regions configurable
  • Unattended baggage detection, up to 4 regions configurable
  • Object removal detection, up to 4 regions configurable,
  • The smart events are only supported under full power mode.
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

General

• Power:
  • 12 VDC ± 20%, Ø 5.5 mm coaxial power plug
  • 1. Standby power consumption: 53 mW
  • 2. The average power consumption of 24 hours: 2 W (4G transmission is excluded).
  • 3. The max. power consumption: 3.2 W
• Material: Front cover: metal, body: metal, bracket: metal
• Dimension: 829.9 × 696.3 × 760 mm (32.7″ × 27.4″ × 30″) (Max. size of the camera after it is completely assembled)
• Package Dimension 862 × 292 × 765 mm (33.9″ × 10.3″ × 30.1″)
• Weight Approx. 25.4 kg (56.0 lb.)
• With Package Weight Approx. 30.1 kg (66.3 lb.)
• Storage Conditions: -20 °C to 60 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -20 °C to 60 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via email, pixel counter

Battery

• Battery: Type Lithium *The battery should be ordered separately.
• Capacity: 30 Ah
• Max. Output Voltage: 12.6 V
• Battery Voltage: 10.8 V
• Operating Temperature:
  • Charging: -20 °C to 45 °C (-4 °F to 131 °F)
  • Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
• Battery: Life More than 500 cycles
• Battery Weight: Approx. 3.3 kg (7.3 lb.)
• Extended Dimension: 236 × 154 × 80 mm (9.3″ × 6.1″ × 3.2″)

Approval

• EMC:
  • CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
  • 50130-4: 2011+A1: 2014);
  • RCM (AS/NZS CISPR 32: 2015);
  • FCC (47 CFR Part 15, Subpart B);
  • IC (ICES-003: Issue 7)
• RF:
  • CE: CE-RED (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN
  • 301489-52,EN 62133);
  • ICASA: same as CE-RED
  • FCC ID (47 CFR Part15 Subpart C);
  • IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);
  • MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)
• Safety:
  • CB (IEC 62368-1:2014+A11)
  • CE-LVD (EN 62368-1:2014/A11:2017)
  • LOA (IEC/EN 60950-1)
• Environment:
  • CE-RoHS (2011/65/EU);
  • WEEE (2012/19/EU);
  • Reach (Regulation (EC) No 1907/2006)
• Protection:
  • Camera: IP67 (IEC 60529-2013)
  • Wind resistance 12 level
