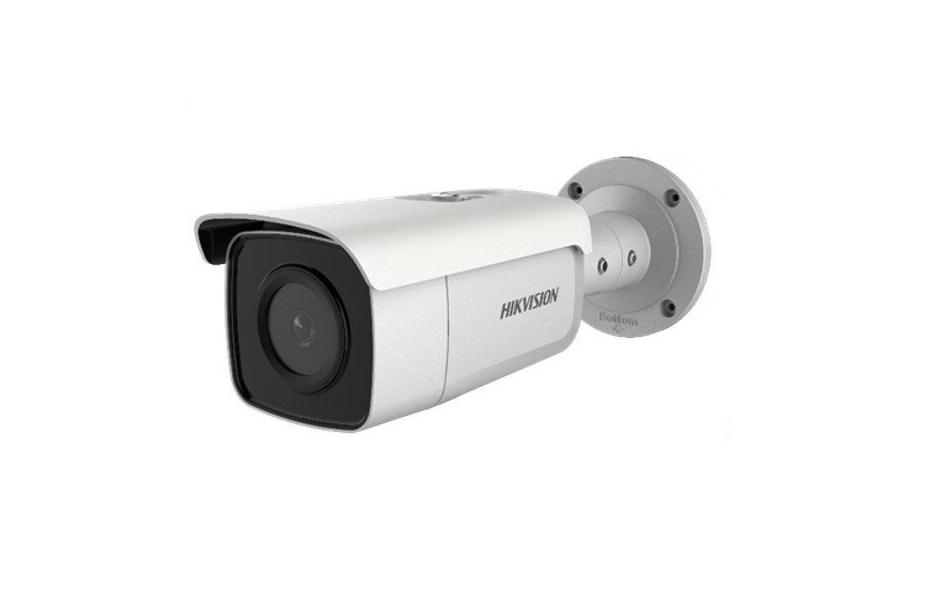

HIKVISION 8MP 4K BULLET 4.0MM – IR 80M

Model: Hikvision DS-2CD2T86G2-4I (4mm)

8MP AcuSense Fixed Bullet Network Camera

Features

• High quality imaging with 8 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• False alarm reduction through human and vehicle target classification based on deep learning
• Water and dust resistant (IP67)
• 80 m IR distance for bright night imaging
• Robust structure design with full metal materials

Specifications

Illuminator

• IR Range: up to 80m
• Wavelength: 850 nm

Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board Storage: Built-in micro SD slot, up to 256 GB


• Image Enhancement: BLC, HLC, 3D DNR
• Image Setting: Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
• Day/Night Switch: Day/Night/Auto/Schedule

Lens

• Lens: Fixed lens 4 mm
• Aperture: F1.6
• FOV: 4 mm, horizontal FOV: 87.1°, vertical FOV: 47.4°, diagonal FOV: 101.8°
• Lens Mount: M16

General

• Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian,
  Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian,
  Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, pixel counter
• Reset: Reset via reset button on camera body, web browser and client software
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, two-core terminal block; reverse polarity protection; PoE (802.3at, class 4)
• Power Consumption And Current: 12 VDC, 0.88 A, max. 10.5 W; PoE (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12 W
• Material: Metal
• Dimensions: Camera: Φ 105 × 290 mm (Φ 4.1″ × 11.4″) With package: 386 × 156 × 155 mm (15.2″ × 6.1″ × 6.1″)
• Weight: Camera: approx. 1270 g (2.8 lb.) With package: approx. 1510 g (3.3 lb.)

Video

• Max. Resolution: 3840 × 2160
• Main Stream: 50Hz: 20fps (3840 × 2160, 3072 × 1728), 25fps (2688 × 1520,1920 × 1080, 1280 × 720) 60Hz: 20fps (3840 × 2160, 3072 × 1728), 30fps (2688 × 1520,1920 × 1080, 1280 × 720)
• Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream: 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
• Video Compression: Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Video Bit Rate: 32 Kbps to 16 Mbps
• Scalable Video Coding (SVC): H.264 and H.265 encoding support

Approval

• EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: Ingress protection: IP66 (IEC 60529-2013), IK10(IEC 62262:2002)

Network

• Network Storage: microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users, 3 levels: administrator, operator and user
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Min. Illumination: Color: 0.014 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Day &Night: IR Cut Filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• WDR: 120 dB

Smart Feature-Set

• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
• Premier Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (Human&Vehicle classification)
• Region Of Interest: 1 fixed region for main stream, sub-stream and third stream
• Linkage Method: Upload to FTP/NAS/memory card, notify surveillance center, send email, alarm output, audible warning, trigger capture
