HIKVISION 8MP 4K COLORVU BULLET 4.0MM + MICRO

Model: Hikvision DS-2CD2087G2-LU(4mm)

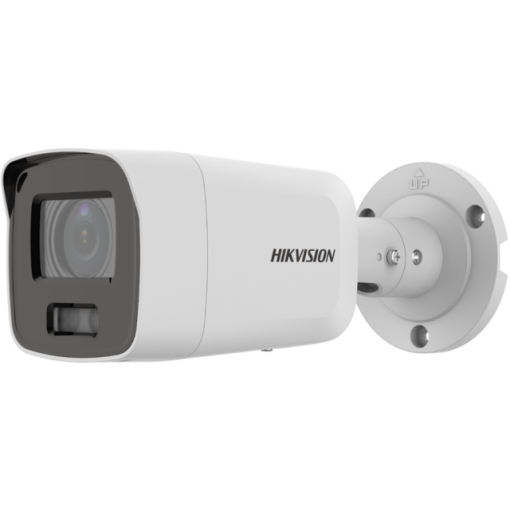

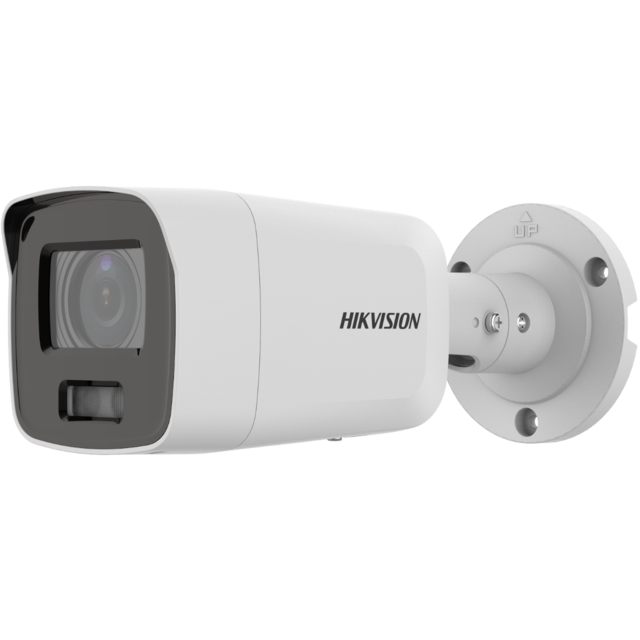

4 K ColorVu Fixed Bullet Network Camera

Features

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 130 dB WDR technology
• Focusing on human and vehicle classification based on deep learning
• 24/7 colorful imaging
• Built-in microphone for real-time audio security (-U)

Specifications

Camera

• Image Sensor: 1/1.2″ Progressive Scan CMOS
• Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• P/N: P/N
• Wide Dynamic Range: 130 dB
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Depth Of Focus: 4 mm: 7 m to ∞
• Lens Type & FOV: 4 mm, horizontal FOV 88°, vertical FOV 49°, diagonal FOV 102°
• Aperture: F1.0

DORI

• DORI: 4 mm, D: 111 m, O: 44 m, R: 22 m, I: 11 m

Illuminator

• White Light Range: 40 m
• Smart Supplement Light: Yes

Video

• Max. Resolution: 3840 × 2160
• Main Stream:
  • 50Hz: 20 fps (3840 × 2160, 3072 × 1728)
  • 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60Hz: 20 fps (3840 × 2160, 3072 × 1728)
  • 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub Stream:
  • 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream:
  • 50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
• Video Compression:
  • Main stream: H.265/H.264/H.264+/H.265+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main Stream supports
• H.265+: Main Stream supports
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): Yes
• Region Of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

• Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate: -U: 64 Kbps (G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 192 Kbps(MP2L2)/8 to 320 Kbps(MP3)/16 to 64Kbps(AAC)
• Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: -U: Yes

Network

• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  • Plug-in required live view: IE 10, IE 11
  • Plug-in free live view : Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+


• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Parameters Switch: Yes
• Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

• Built-In Microphone: -U: Yes
• On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event: Motion detection (human and vehicle), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Scene change detection

Deep Learning Function

• Face Capture: Yes
• Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection

General

• Linkage Method: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, send email
• Web Client Language:
  • 33 languages
  • English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French,
    Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish,
    Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
• Software Reset: Yes
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply:
  • 12 VDC ± 25%, reverse polarity protection
  • PoE: 802.3af, Class 3
• Power Consumption And Current:
  • 12 VDC, 0.6 A, max. 7 W
  • PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.5 W
• Power Interface: Ø5.5 mm coaxial power plug
• Material: Front cover: metal, back cover: metal
• Screw Material: SUS304
• Camera Dimension: 78.8 × 78.6 × 215.2 mm (3.1″ × 3.1″ × 8.5”)
• Package Dimension: 315 × 137 × 141 mm (12.4″ × 5.4″ × 5.6″)
• Camera Weight: Approx. 860 g (1.9 lb.)
• With Package Weight: Approx. 1265 g (2.8 lb.)

Approval

• Class: Class B
• EMC:
  • FCC SDoC (47 CFR Part 15, Subpart B);
  • CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
  • RCM (AS/NZS CISPR 32: 2015);
  • IC VoC (ICES-003: Issue 6, 2016)
• Safety:
  • UL (UL 60950-1);
  • CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
  • CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013)
