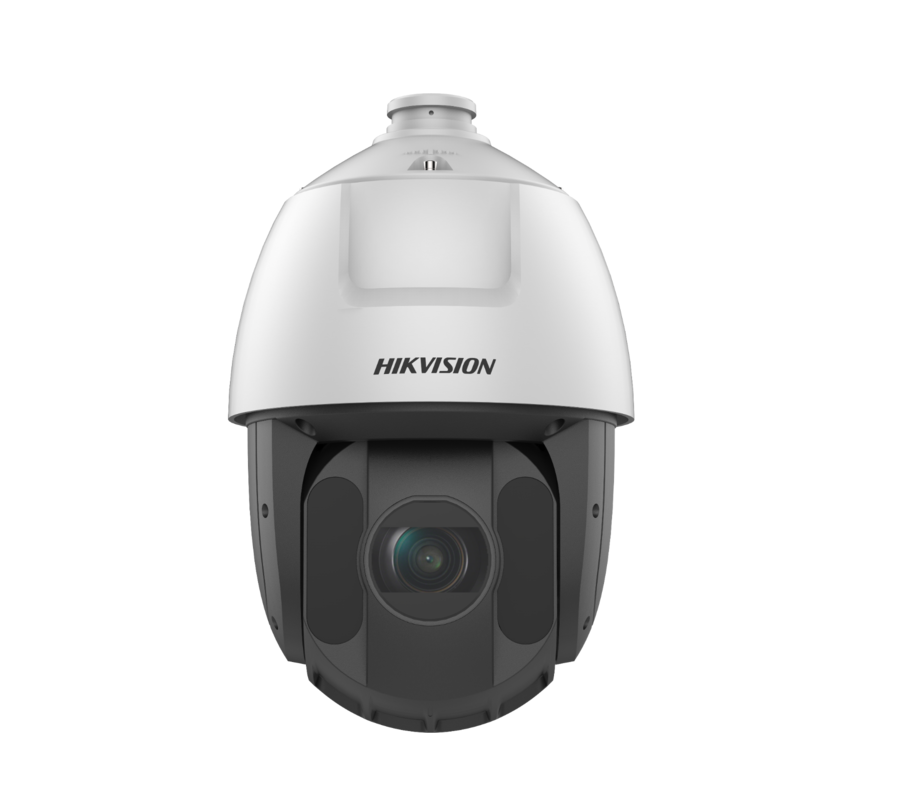

HIKVISION 4MP 25X ZOOM PTZ VARIFOCAL 4.8-120MM

Model: Hikvision DS-2DE5425IW-AE(T5)

5-inch 4 MP 25X Powered by DarkFighter IR Network Speed Dome

Features

Hikvision DS-2DE5425IW-AE(T5) 4 MP 25× Network IR Speed Dome adopts 1/2.8″ progressive scan CMOS chip. With the 25× optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.

• 1/2.8″ Progressive Scan CMOS
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• 25× optical zoom and 16× digital zoom provide close up views over expansive areas
• WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
• Expansive night view with up to 150 m IR distance 24 VAC & PoE (802.3at)
• Efficient H.265+/H.265 compression technology

Specifications

Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Min. Illumination:Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1 s to 1/30,000 s
• Slow Shutter: Yes
• Day & Night: IR cut filter
• Zoom: 25x optional, 16x digital
• Max. Resolution: 2560 × 1440

Lens

• Focus: Auto, semi-auto, manual
• Focal Length: 4.8 mm to 120 mm
• Zoom Speed: Approx. 3.6 s
• FOV:
  • Horizontal field of view: 55° to 2.4° (wide-tele),
  • Vertical field of view: 33° to 1.4° (wide-tele),
  • Diagonal field of view: 61.5° to 2.8° (wide-tele)
• Aperture: Max. F1.6

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: IR Distance: up to 150 m

PTZ

• Movement Range (Pan): 360°
• Movement Range (Tilt): -15° to 90° (auto flip)
• Pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
• Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Pan: Yes
• Presets: 300
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans
• Power-Off Memory: Yes
• Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Preset Freezing: Yes
• Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

• Main Stream
  • 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream
  • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
  • 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Video Compression
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline profile/Main profile/High profile
• H.265 Type: Main profile
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region Of Interest (ROI): 8 fixed regions for each stream

Audio

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Simultaneous Live View: Up to 20 channels
• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
• Client: iVMS-4200, HikCentral Pro, Hik-Connect
• Web Browser: IE11, Chrome57+, Firefox52+, Safari11+


• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Wide Dynamic Range (WDR): 120 dB
• Defog: Digital Defog
• Image Stabilization: No
• Regional Exposure: Yes
• Regional Focus: Yes
• Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Image Parameters Switch: Yes
• Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable
• SNR: ＞52 dB

Interface

• Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Alarm: 2 inputs, 1 output
• Audio:
  • 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
  • 1 output (line out), line level, output impedance: 600 Ω
• Reset: Yes

Event

• Basic Event: Motion detection, video tampering alarm, exception, alarm input and output
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
• Alarm Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

• Face Capture: Yes

General

• Power: 24 VAC, Max. 24 W (including max. 9 W for IR and max. 1.6 W for heater); PoE (802.3at)
• Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
• Demist: Yes
• Material: Metal
• Dimension: Ø 210 mm × 344.7 mm (Ø 8.27″ × 13.57″) – Approx. 3.0 kg (6.61 lb.)

Approval

• EMC:
  • FCC (47 CFR Part 15, Subpart B);
  • CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
  • RCM (AS/NZS CISPR 32: 2015);
  • IC (ICES-003: Issue 7);
  • KC (KN 32: 2015, KN 35: 2015)
• Safety
  • UL (UL 62368-1);
  • CB (IEC 62368-1:2014+A11);
  • CE-LVD (EN 62368-1:2014/A11:2017)
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
