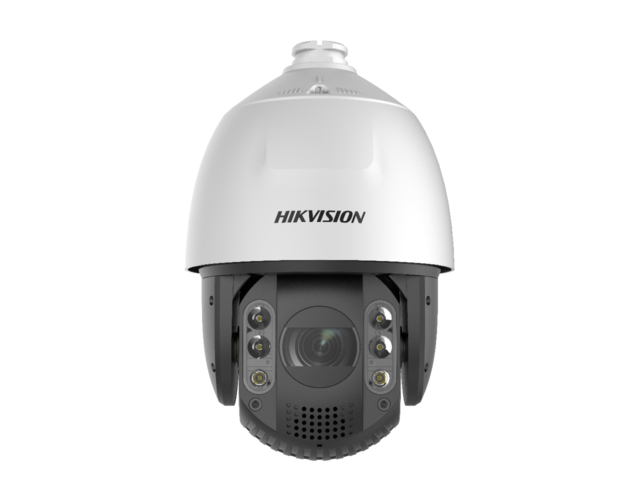

HIKVISION 4MP PTZ 32X ZOOM VARIFOCAL 5.9-188.8mm

Model: Hikvision DS-2DE7A432IW-AEB(T5)

7-inch 4 MP 32X Powered by DarkFighter IR Network Speed Dome

Features

Hikvision DS-2DE7A432IW-AEB(T5) 4 MP 32× IR Network Speed Dome adopts 1/1.8″ progressive scan CMOS chip.
With the 32× optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

• 1/1.8″ progressive scan CMOS
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
• 32× optical zoom and 16× digital zoom provide close up views over expansive areas
• Expansive night view with up to 200 m IR distance
• Focuses on human and vehicle targets classification based on deep learning
• Face capture: Up to 5 faces captured at the same time

Specifications

DORI

• Definition – Distance:
• Detect: 25px/m – 2046.9m
• Observe: 63 px/m – 812.3m
• Reconize: 125 px/m – 409.4m
• Identify: 250 px/m – 204.7m

Camera

• Max. Resolution: 2560 × 1440
• Image Sensor: 1/1.8″ progressive scan CMOS
• Min. Illumination: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR
• Shutter Speed: 1/1 s to 1/30000 s
• Slow Shutter: Yes
• Day & Night: IR cut filter
• Zoom: 32x optical, 16x digital

Lens

• Focal Length: 5.9 mm to 188.8 mm
• Zoom Speed Approx.: 4.8 s
• FOV:
  • Horizontal field of view: 50.8° to 2.6° (wide-tele),
  • Vertical field of view: 29.4° to 1.5° (wide-tele),
  • Diagonal field of view:57.4° to 3° (wide-tele)
• Aperture Max.: F1.5
• Focus: Auto, semi-auto, manual, rapid focus

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: IR Distance: up to 200 m

PTZ

• Movement Range (Pan): 360°
• Movement Range (Tilt): -15° to 90° (auto flip)
• Pan Speed: Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
• Tilt Speed: Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
• Proportional Pan: Yes
• Presets: 300
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans
• Power-off Memory: Yes
• Park Action: Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Preset Freezing: Yes
• Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

• Main Stream:
  • 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
  • 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
  • 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream:
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Video Compression:
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 kbps to 16384 kbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 8 fixed regions for each stream

Audio

• Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
• Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Simultaneous Live View: Up to 20 channels
• User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
• Security:
  • Password protection, complicated password,
  • HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark,
  • IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
• Client: iVMS-4200, HikCentral Pro, Hik-Connect
• Web Browser: IE11, Chrome 57+, Firefox 52+, Safari 11+


• Day/Night: Switch Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Wide Dynamic Range (WDR): 120 dB
• Defog: Digital defog
• Image Stabilization: EIS
• Regional Exposure: Yes
• Regional Focus: Yes
• Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable
• SNR: > 52 dB

Interface

• Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Alarm: 2 inputs, 1 output
• Audio:
  • 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%;
  • 1 output (line out), line level, output impedance: 600 Ω
• Reset: Yes
• Built-in Speaker: 1 built-in speaker with effective distance reaching max. 30 meters

Event

• Basic Event: Motion detection, video tampering alarm, exception, alarm input and output
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
• Smart Tracking: Manual tracking, auto-tracking
• Alarm Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

• Face Capture:
  • Detects up to 5 faces simultaneously.
  • Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
• Perimeter Protection:
  • Line crossing, intrusion, region entrance, region exiting
  • Support alarm triggering by specified target types (human and vehicle)

General

• Power:
  • 24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater);
  • Hi-PoE
• Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
• Demist: Yes
• Material: ADC12
• Dimension: Ø 220 mm × 363.3 mm (Ø 8.66″ × 13.91″)
• Weight Approx.: 5 kg (11.03 lb.)

Approval

• Protection: IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection
• EMC:
  • FCC SDoC (47 CFR Part 15, Subpart B);
  • CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
  • RCM (AS/NZS CISPR 32: 2015);
  • IC VoC (ICES-003: Issue 6, 2019);
  • KC (KN 32: 2015, KN 35: 2015)
• Safety:
  • UL (UL 62368-1);
  • CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
  • CE-LVD (EN 62368-1:2014+A11:2017);
  • BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
  • LOA (SANS IEC60950-1)
• Environment
  • CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
  • Reach (Regulation (EC) No 1907/2006)
