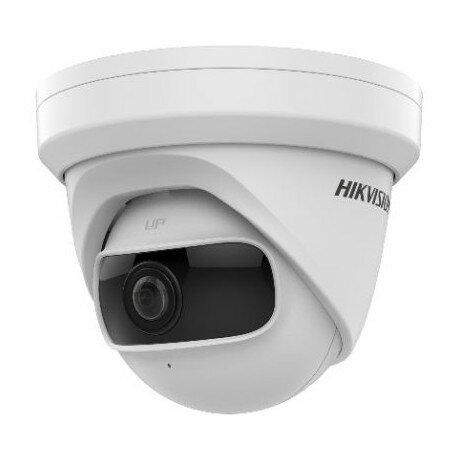

HIKVISION 4MP TURRET 1.68MM – ULTRA WIDE

Model: Hikvision DS-2CD2345G0P-I(1.68mm)

4MP Super Wide Angle Fixed Turret Network Camera

Features

• High quality imaging with 4 MP resolution
• 180°super wide field of view
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Distortion correction
• Robust structure design with full metal materials

Specifications

Camera

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Min. Illumination: Color: 0.028 Lux @ (F2.0, AGC ON) B&W: 0.0028 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Day &Night: IR Cut Filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• WDR: 120 dB

Lens

• Lens: Fixed lens, 1.68 mm
• Aperture: F2.0
• FOV: 1.68 mm, horizontal FOV: 180° , vertical FOV: 101° , diagonal FOV: 180°
• Lens Mount: M12

Illuminator

• IR Range: Up to 10 m
• Wavelength: 850 nm

Video

• Max. Resolution: 2688 × 1520
• Main Stream:
  50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream:
  50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Video Compression: Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Video Bit Rate: 32 Kbps to 16 Mbps
• Scalable Video Coding (SVC): H.264 and H.265 encoding support

Smart Feature-Set

• Smart Event: Line crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection, scene change detection
• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Region Of Interest: 1 fixed region for main stream, sub-stream and third stream
• Linkage Method: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture


• Image Enhancement: BLC, HLC, 3D DNR
• Image Setting: Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
• Day/Night Switch: Day/Night/Auto/Schedule

Network

• Network Storage: microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE,
  NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5),
  watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users, 3 levels: administrator, operator and user
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in free live view: Chrome 45.0+, Firefox 52.0+ Local Service: Chrome 41.0+, Firefox 30.0+

Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board Storage: Built-in micro SD slot, up to 256 GB

General

• Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
  French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian,
  Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter
• Reset: Reset via reset button on camera body, web browser and client software
• Startup And Operating Conditions: -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
• Storage Conditions : -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, type 1, class 3)
• Power Consumption And Current:
  12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8W
• Material: Metal & Plastic
• Dimensions: Camera: Φ 127.3 × 104.1 mm (Φ 5″ × 4.1″) With package: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
• Weight: Camera: Approx. 520 g (1.1 lb.) With package: Approx. 700 g (1.5 lb.)

Approval

• EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3:
  2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
  BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
