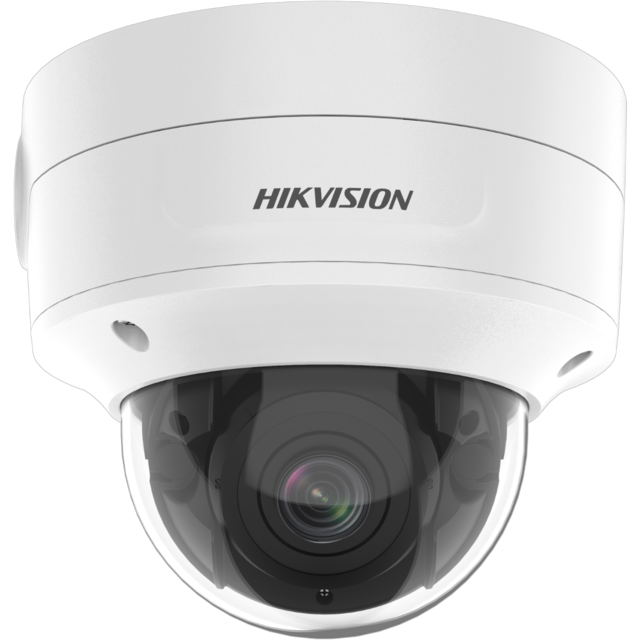

HIKVISION 8MP 4K DOME VARIFOCAL 2.8-12MM + AUDIO/ALARM

Model: Hikvision DS-2CD2786G2-IZS(2.8-12mm)

4K AcuSense Varifocal Dome Network Camera

Features

• 1/2″ Progressive Scan CMOS
• 3840 × 2160 @ 20fps
• 2.8 to 12 mm varifocal lens
• 120dB WDR
• Powered by Darkfighter
• H.265+, H.265, H.264+, H.264
• Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
• IP66, IK 10
• Human and vehicle classification alarm based on deep learning

Specifications

Camera

• Image Sensor: 1/2″ Progressive Scan CMOS
• Signal System: PAL/NTSC
• Min. Illumination: Color: 0.011 Lux @ (F1.4, AGC ON), 0 Lux with IR
• Shutter time: 1/3 s to 1/100,000 s
• Slow shutter: Support
• Lens: 2.8 to 12 mm, horizontal FOV 108° to 45°, vertical FOV 58°to 25°, diagonal FOV 127°to 52°
• Lens Mount: φ14
• Adjustment Range: Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
• Day& Night: IR cut filter with auto switch
• Wide Dynamic Range: 120 dB
• Digital noise reduction: 3D DNR
• Focus: Motorized VF lens(-Z model)

Compression Standard

• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
• Video bit rate: 32Kbps~16Mbps


• Max. Image Resolution: 3840 × 2160
• Frame Rate:
  • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Sub Stream:
  • 50Hz: 20fps (3840 × 2160, 3072 × 1728), 25fps (2688 × 1520,1920 × 1080, 1280 × 720)
  • 60Hz: 20fps (3840 × 2160, 3072 × 1728), 30fps (2688 × 1520,1920 × 1080, 1280 × 720)
• Third Stream:
  • 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
• Image Enhancement: BLC/3D DNR
• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Day/Night/Auto/Schedule

Network

• Network Storage: Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE,
  NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
• System Compatibility: ONVIF (Profile S, Profile G),ISAPI

Intelligent

• Behavior analysis: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (Human&Vehicle classification)

Interface

• Audio: 1 audio input (line in), 1 audio output (line out), mono sound
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Alarm: 1 alarm input, 1 alarm output (max. 24 VAC/24 VDC@500 mA)
• Alarm Input: 1
• Alarm Output: 1
• On-board storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Reset Button: Yes

Smart Feature-set

• Behavior Analysis: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (Human&Vehicle classification)
• Line Crossing Detection: Cross a pre-defined virtual line
• Intrusion Detection: Enter and loiter in a pre-defined virtual region
• Region Entrance: Enter a pre-defined virtual region from the outside place
• Region Exiting: Exit from a pre-defined virtual region

General

• Operating Conditions:
  • -30 °C ~ 60 °C (-22 °F ~ 140 °F)
  • Humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, class 3)
• Power Consumption: 12 VDC, 0.9 A, max. 10.8 W PoE: (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.9 W
• Impact Protection: IK10
• Weather Proof: IP66
• IR Range: Up to 40m
• Dimensions:
  • Camera: Φ153.5 × 133.2 mm (Φ6″ × 5.2″)
  • With package: 244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″)
• Weight:
  • Camera: 1080 g (2.4 lb.)
  • With package: 1671 g (3.7 lb.)
