HIKVISION 8 CHANNELS NVR 12MP – 2XSATA/ALARM 4 IN/1OUT

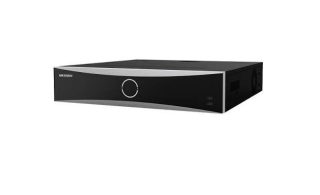

Model: Hikvision DS-7608NXI-K2

8-ch 1U K Series AcuSense 4K NVR

Features

• Up to 8-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
• 1 HDMI and 1 VGA interfaces, both interfaces support independent video outpu
• 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
• Up to 80 Mbps incoming bandwidth

Specifications

Video And Audio

• IP Video Input: 8-ch
• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 160 Mbps
• HDMI Output: 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output: 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode: HDMI/VGA independent output
• Audio Input:1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output:1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio:1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input)

Decoding

• Decoding Format: H.265/H.265+/H.264/H.264+
• Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback: 8-ch
• Decoding Capability: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726

Network

• Remote Connection: 128-ch
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA: 2 SATA interfaces
• Capacity: Up to 10 TB capacity for each HDD
• USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Alarm In/Out: 4/1

General

• Power Supply: 12 VDC, 3.33A
• Consumption: ≤ 15 W (without HDD)
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10 to 90 %
• Dimension (W × D × H): 385 × 315× 52 mm (15.2″ × 12.4″ × 2.0″) – ≤ 1 kg (without HDD, 2.2 lb.)

Certification

• FCC:Part 15 Subpart B, ANSI C63.4-2014
• CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
